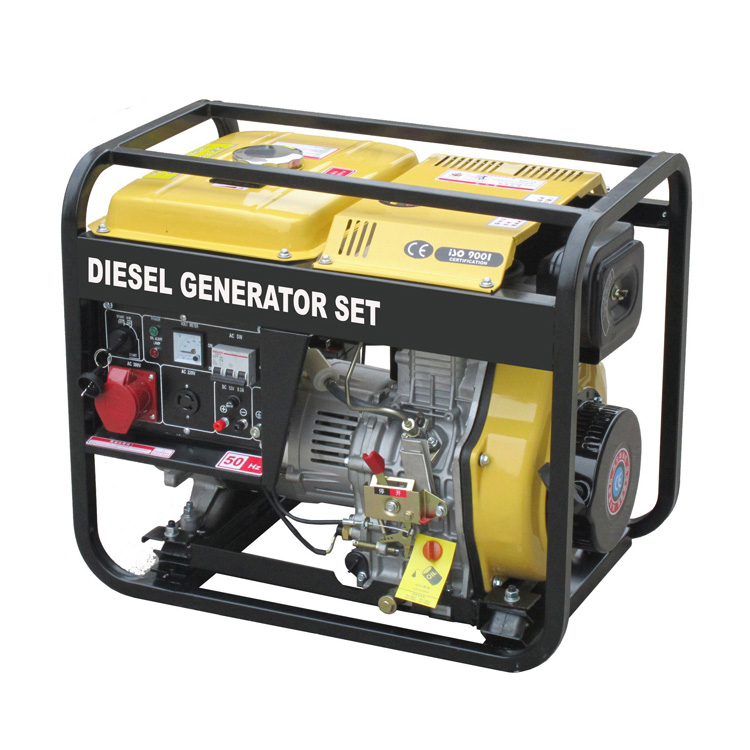

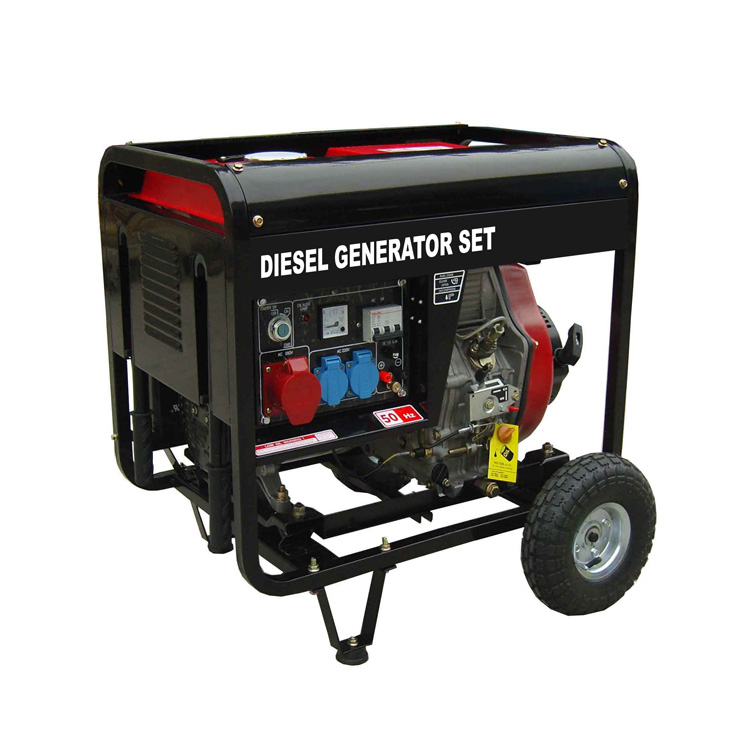

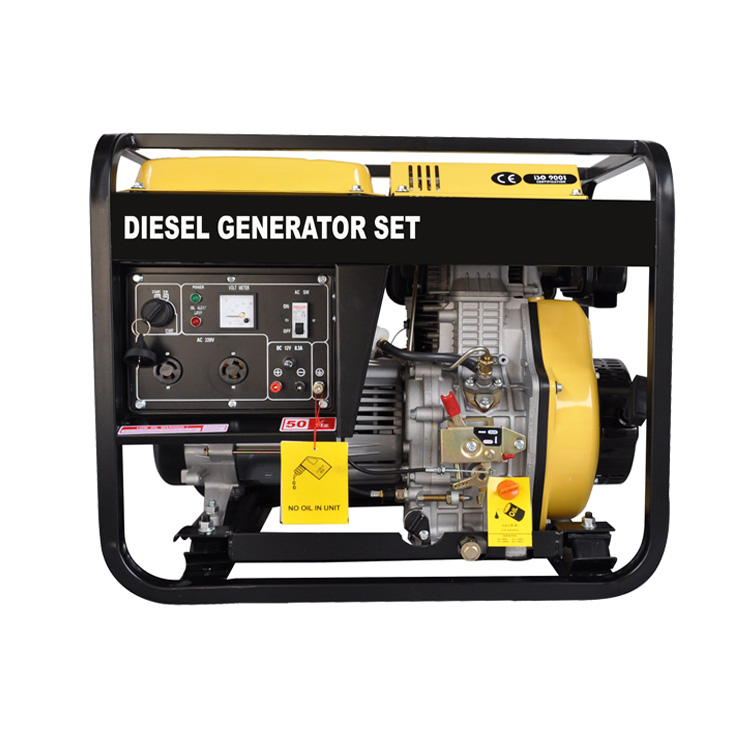

Open Diesel Generator
Air Cooled Diesel Generator Set
- Powered by Air cooled engine
- Power：2.8KVA to 7.0KVA
- Alternator with AVR
- Open type / Silent type
- Product description: Air Cooled Diesel Generator Set Manual Start, Carton packing, Optional Electric start with battery, wheel kit.
Small Power 2.8KVA to 7.0KVA, Powered by air cooled diesel engine.
| Open type Model | JDE3500 | JDE6500 | JDE7500 | JDE8500 | JDE9500 | |||||
| Rated frequency (Hz) | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 | 50 | 60 |
| Rated output (kVA) | 2.8 | 3.3 | 4.5 | 5 | 5 | 5.5 | 5.5 | 6 | 6 | 6.5 |
| Max. output (kVA) | 3.2 | 3.8 | 5 | 5.5 | 5.5 | 6 | 6 | 6.5 | 6.5 | 7 |
| Rated Voltage (V) | 230 | 120/240 | 230 | 120/240 | 230 | 120/240 | 230 | 120/240 | 230 | 120/240 |
| Rated current (A) | 12.2 | 27.5/13.8 | 19.6 | 41.7/20.8 | 21.7 | 45.8/22.9 | 23.9 | 50/25 | 26 | 54/27 |
| DC12V output | 12V / 8.3A | 12V / 8.3A | 12V / 8.3A | 12V / 8.3A | 12V / 8.3A | |||||
| Rated rotation speed (r/min) | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 | 3000 | 3600 |
| Phase NO. | Single phase | Single phase | Single phase | Single phase | Single phase | |||||
| Power factor (Cos Φ) | 1 | 1 | 1 | 1 | 1 | |||||
| Insulation Grade | B | B | B | B | B | |||||
| Pole number | 2 | 2 | 2 | 2 | 2 | |||||
| Excitation mode | Self-excitation & constant voltage (AVR) | |||||||||
| Panel Type | General Panel | General Panel | General Panel | General Panel | General Panel | |||||
| Noise level（7m）dB(A) | 60 | 60 | 65 | 65 | 65 | |||||
| Structure type | Open or Silent frame | Open or Silent frame | Open or Silent frame | Open or Silent frame | Open or Silent frame | |||||
| Engine Model | KM178FG | KM186FAG | KM188FG | KM188FG | KM192FG | |||||
| Engine Type | Single cylinder, vertical, four-stroke, direct injection,air-cooled | |||||||||
| Cylinder NO.-bore×stroke (mm) | 1-78×62 | 1-86×72 | 1-88×75 | 1-88×75 | 1-92×75 | |||||
| Displacement (ml) | 296 | 418 | 456 | 456 | 518 | |||||
| Rated power [KW/(r/min)] | 3.68/3000 | 4.0/3600 | 5.7/3000 | 6.3/3600 | 7.5/3000 | 8.2/3600 | 7.5/3000 | 8.2/3600 | 8.0/3000 | 9.2/3600 |
| Compression ratio | 20：1 | 19：1 | 19：1 | 19：1 | 19：1 | |||||
| Lubrication system | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | Pressure splashed | |||||
| Starting system (optional) | Recoil / Electric Start | Recoil / Electric Start | Recoil / Electric Start | Recoil / Electric Start | Recoil / Electric Start | |||||
| Lube capacity (L) | 1.1 | 1.65 | 1.65 | 1.65 | 1.65 | |||||
| Starting motor capacity (V-kW) | 12V 0.8kW | 12V 0.8kW | 12V 0.8kW | 12V 0.8kW | 12V 0.8kW | |||||
| Charging generator capacity (V-A) | 12V 3A | 12V 3A | 12V 3A | 12V 3A | 12V 3A | |||||
| Battery capacity (V-Ah) | 12V 36Ah | 12V 36Ah | 12V 36Ah | 12V 36Ah | 12V 36Ah | |||||
| Fuel consumption (g/kW.h) | ≤370 | ≤360 | ≤360 | ≤360 | ≤360 | |||||
| Fuel tank capacity (L) | 16 | 16 | 16 | 16 | 16 | |||||
| Continuous running time (hr) | 8.5 | 5.5 | 5.5 | 5.5 | 5.5 | |||||
| Open type Packing size (MM) | 655X480X530 | 740*495*650 | 740*495*650 | 740*495*650 | 740*495*650 | |||||
| Weight (Kg) | 68 | 85 | 85 | 85 | 85 | |||||
| Loading quantity @ 20GP | 140 pcs | 102 pcs | 102 pcs | 102 pcs | 102 pcs | |||||
