Open Diesel Generator

  • Doosan Diesel Generator Set

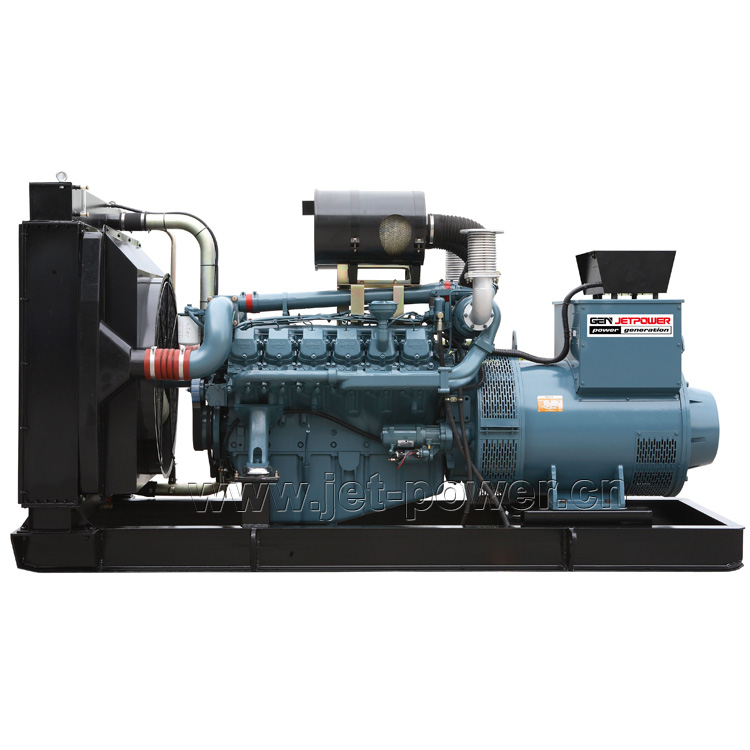

Doosan Diesel Generator Set

Doosan Diesel Generator Set

  • Output:60kVA - 825KVA
  • Powered by Doosan
  • Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
  • Open type / Silent type
  • Product description: Doosan Diesel Generator Set Power from 60KVA to 825KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.

Silent diesel generator set, Powered by Doosan Engine

Soundproof diesel generator set

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MM to 10MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set   Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm  or  60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level:  ≤1000 meters

Ambient air temperature:  ≤40°C

Relative air humidity:  ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U,  DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system


Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.


Model 400V / 50Hz / 1500RPM DOOSAN Diesel Engine 1500rpm Alternator
Standby output Prime Output Model t Engine type Displacement Bore×Stroke Brushless Alternator
KVA KW KVA KW No. of Cylinder Governor (L) (MM)
DS-65 65 52 60 48 DB58 L6 Mechanical 5.8 102×118 JET224E
DS-94 94 75 85 68 D1146 L6 Mechanical 8.1 111×139 JET224G
DS-131 133 106 120 96 D1146T L6 Mechanical 8.1 111×139 JET274D
DS-175 175 140 160 128 P086TI-I L6 Electric 8.1 111×139 JET274F
DS-220 220 176 200 160 P086TI L6 Electric 8.1 111×139 JET274H
DS-300 300 240 275 220 P126TI L6 Electric 11.1 123×155 JET274K
DS-330 330 264 300 240 P126TI-II L6 Electric 11.1 126×155 JET444D
DS-413 413 330 375 300 P158LE-I V8 Electric 14.6 128×142 JET444FS
DS-454 454 363 413 330 P158LE V8 Electric 14.6 128×142 JET444F
DS-500 500 400 450 360 DP158LC V8 Electric 14.6 128×142 JET544C
DS-550 550 440 500 400 DP158LD V8 Electric 14.6 128×142 JET544D
DS-625 625 500 563 450 DP180LA V10 Electric 18.3 128×142 JET544E
DS-688 688 550 625 500 DP180LB V10 Electric 18.3 128×142 JET544FS
DS-756 756 605 688 550 DP222LB V12 Electric 21.9 128×142 JET544F
DS-825 825 660 750 600 DP222LC V12 Electric 21.9 128×142 JET634B
