Open Diesel Generator

  • Deutz Diesel Generator Set

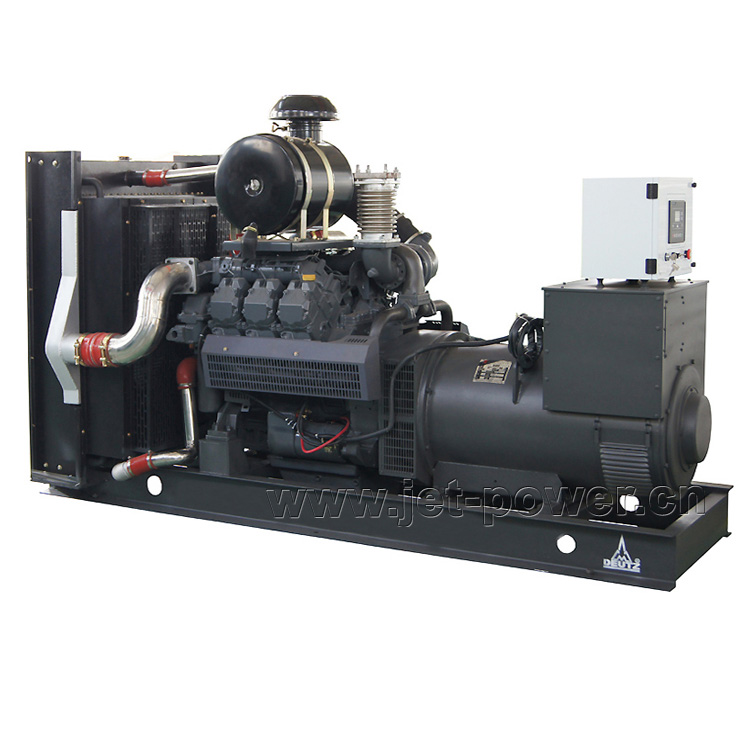

Deutz Diesel Generator Set

Deutz Diesel Generator Set

  • Output: 25kVA - 825KVA
  • Powered by DEUTZ
  • Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
  • Open type / Silent type
  • Product description: DEUTZ Diesel Generator Set Power from 25KVA to 825KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.

Silent diesel generator set, Powered by DEUTZ ENGINE

Soundproof diesel generator set

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MMto6MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set   Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm  or  60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level:  ≤1000 meters

Ambient air temperature:  ≤40°C

Relative air humidity:  ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U,  DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system


Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.


Model 400V / 50Hz / 1500RPM DEUTZ Diesel Engine Alternator
Standby output Prime Output Model Engine type Displacement Bore×Stroke Brushless Alternator
KVA KW KVA KW No. of Cylinder Governor (L) (MM)
D-28 28 22 25 20 D226B-3D L3 Mech. 3.12 105x120 JET184F
D-33 33 26 31 25 D226B-3D L3 Mech. 3.12 105x120 JET184G
D-45 45 36 43 34 TD226B-3D L3 Mech. 3.12 105x120 JET184J
D-55 55 44 50 40 BF4M2012 L4 Mech. 4.04 101x126 JET224D
D-66 66 53 60 48 BF4M2012 L4 Mech. 4.04 101x126 JET224E
D-83 83 66 75 60 BF4M2012C L4 Mech. 4.04 101x126 JET224F
D-94 94 75 85 68 BF4M1013EC L4 Mech. 4.764 108x130 JET224G
D-110 110 88 100 80 BF4M1013EC L4 Mech. 4.764 108x130 JET274C
D-138 138 110 125 100 BF4M1013FC L4 Electric 4.764 108x130 JET274D
D-154 154 123 140 112 BF6M1013EC L6 Mech. 7.146 108x130 JET274E
D-176 176 141 160 128 BF6M1013EC L6 Mech. 7.146 108x130 JET274F
D-200 200 160 180 144 BF6M1013FC-G2 L6 Electric 7.146 108x130 JET274G
D-220 220 176 200 160 BF6M1013FC-G3 L6 Electric 7.146 108x130 JET274H
D-250 250 200 225 180 BF6M1015-LA-GA 6V Electric 11.906 132x145 JET274J
D-275 275 220 250 200 BF6M1015C-LA G1A 6V Electric 11.906 132x145 JET274K
D-316 316 253 288 230 BF6M1015C-LA G2A 6V Electric 11.906 132x145 JET444D
D-353 353 282 320 256 BF6M1015C-LA-G3A 6V Electric 11.906 132x145 JET444E
D-413 413 330 375 300 BF6M1015CP-LAG 6V Electric 11.906 132x145 JET444FS
D-481 481 385 438 350 BF8M1015C-LA G2 8V Electric 15.874 132x145 JET544C
D-550 550 440 500 400 BF8M1015CP-LA G2 8V Electric 15.874 132x145 JET544D
D-633 633 506 575 460 BF8M1015CP-LA G5 8V Electric 15.874 132x145 JET544E
D-750 750 600 688 550 HC12V132ZL-LAG1A 12V Electric 23.812 132x145 JET544H
D-825 825 660 750 600 HC12V132ZL-LAG2A 12V Electric 23.812 132x145 JET634B
