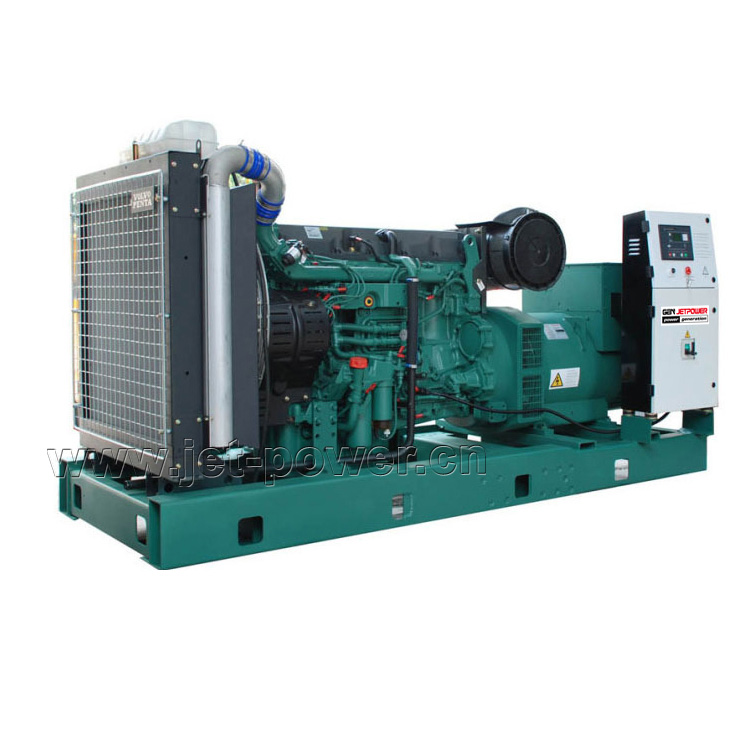

Open Diesel Generator

VOLVO Diesel Generator Set

Output:85kVA - 688KVA
Powered by VOLVO PENTA
Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
Open type / Silent type
Product description: VOLVO PENTA Diesel Generator Set Power from 85KVA to 688KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.
INQUIRY

Silent diesel generator set, Powered by VOLVO PENTA ENGINE

Soundproof diesel generator set

Safety – Stability – Economy - Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins, Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MM to 10MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm or 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

Specifications:

Model	400V / 50Hz / 1500RPM				VOLVO PENTA DIESEL ENGINE 1500rpm					Alternator
	Standby Power		Prime Power		Engine	No. of Cylinders	Bore / Stroke	Displacement	Governing Type	Original Stamford
	kVA	kW	kVA	kW	Engine	No. of Cylinders	（MM)	(L)	Governing Type	Original Stamford
V-94	94	75	85	68	TAD550GE	4 / In Line	108×130	4.76	Electronic	UCI224G
V-110	110	88	100	80	TAD551GE	4 / In Line	108×130	4.76	Electronic	UCI274C
V-138	138	110	125	100	TAD750GE	4 / In Line	108×130	4.76	Electronic	UCI274E
V-165	165	132	150	120	TAD751GE	6 / In Line	108×130	7.15	Electronic	UCI274F
v-200	200	160	188	150	TAD752GE	6 / In Line	108×130	7.15	Electronic	UCI274H
V-220	220	176	200	160	TAD753GE	6 / In Line	108×130	7.15	Electronic	UCI274H
V-275	275	220	250	200	TAD754GE	6 / In Line	108×130	7.15	Electronic	UCDI274K
V-344	344	275	313	250	TAD1351GE	6 / In Line	131×158	12.78	Electronic	HCI444ES
V-385	385	308	350	280	TAD1352GE	6 / In Line	131×158	12.78	Electronic	HCI444E
V-413	413	330	375	300	TAD1354GE	6 / In Line	131×158	12.78	Electronic	HCI444FS
V-440	440	352	400	320	TAD1355GE	6 / In Line	131×158	12.78	Electronic	HCI444F
V-500	500	400	450	360	TAD1650GE	6 / In Line	131×158	12.78	Electronic	HCI544C
V-550	550	440	500	400	TAD1651GE	6 / In Line	144×165	16.2	Electronic	HCI544D
V-633	633	506	575	460	TWD1652GE	6 / In Line	144×165	16.2	Electronic	HCI544E
V-688	688	550	625	500	TWD1653GE	6 / In Line	144×165	16.12	Electronic	HCI544FS
