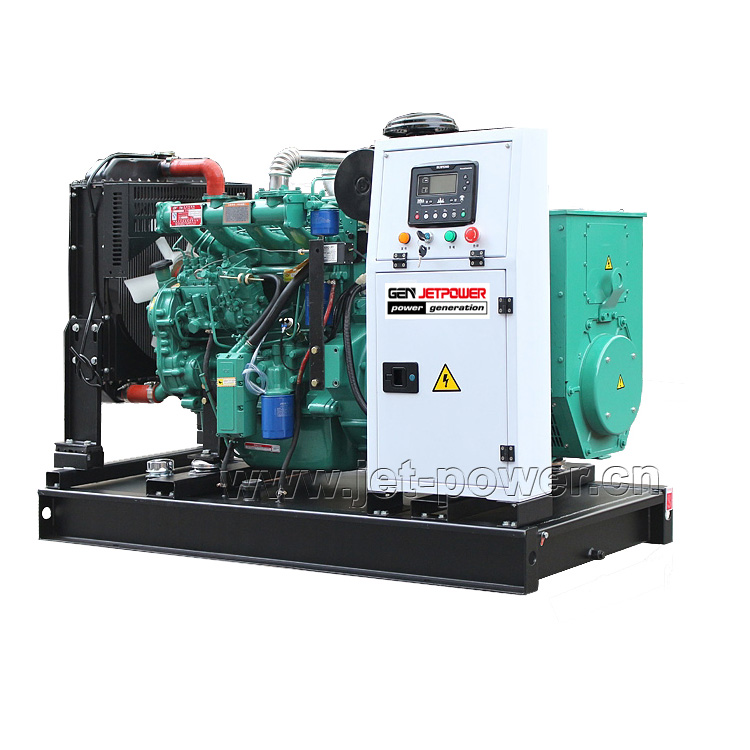

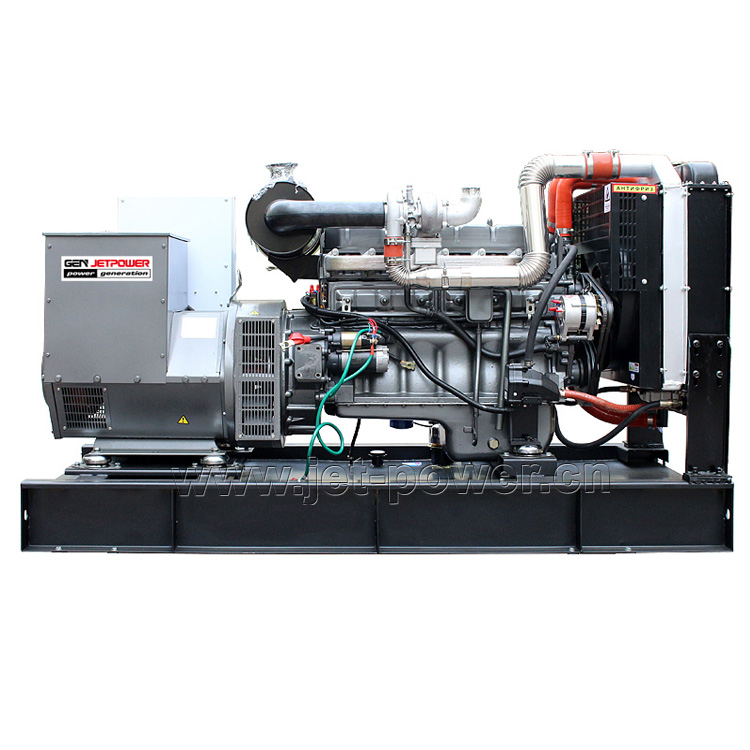

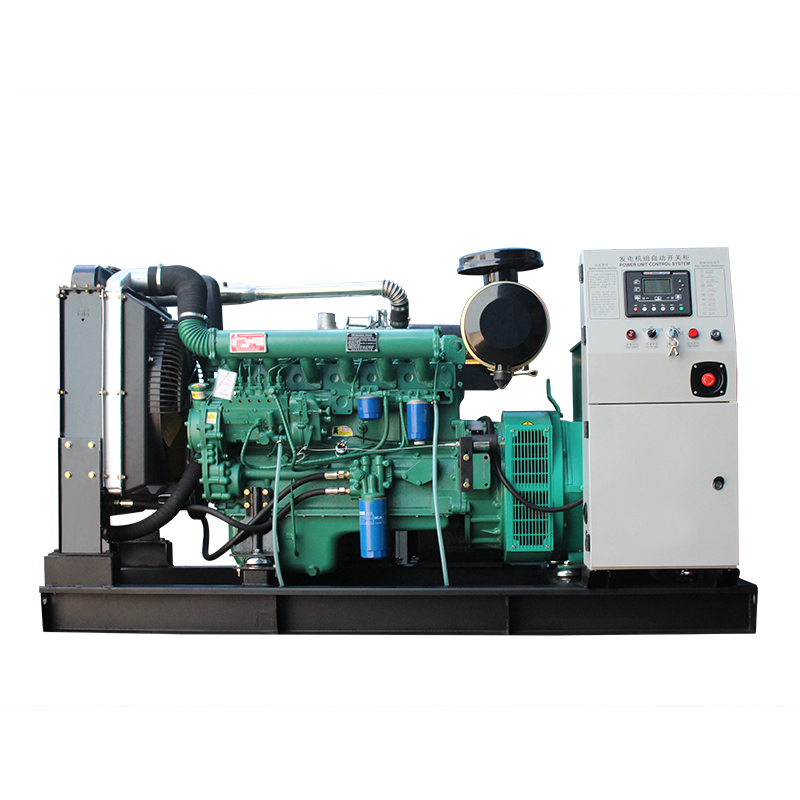

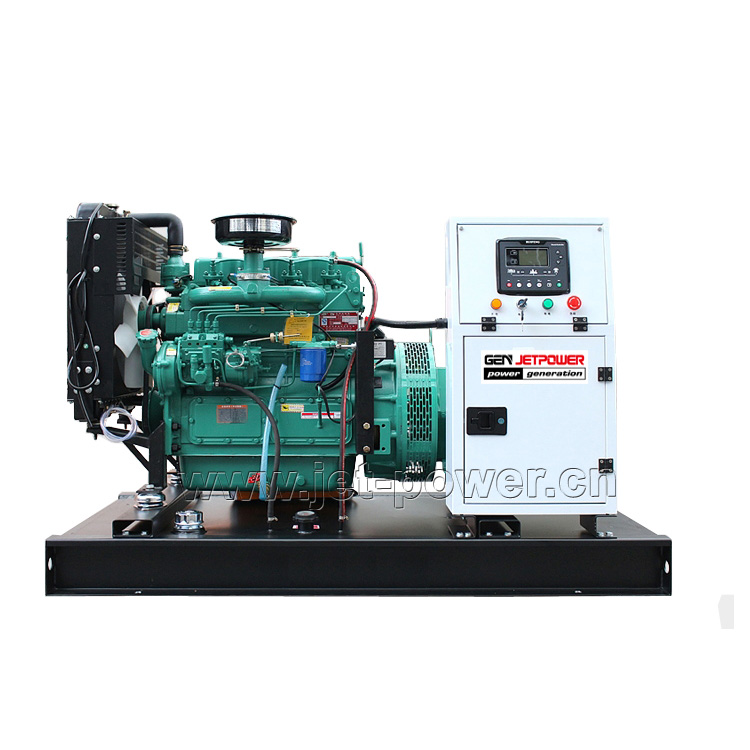

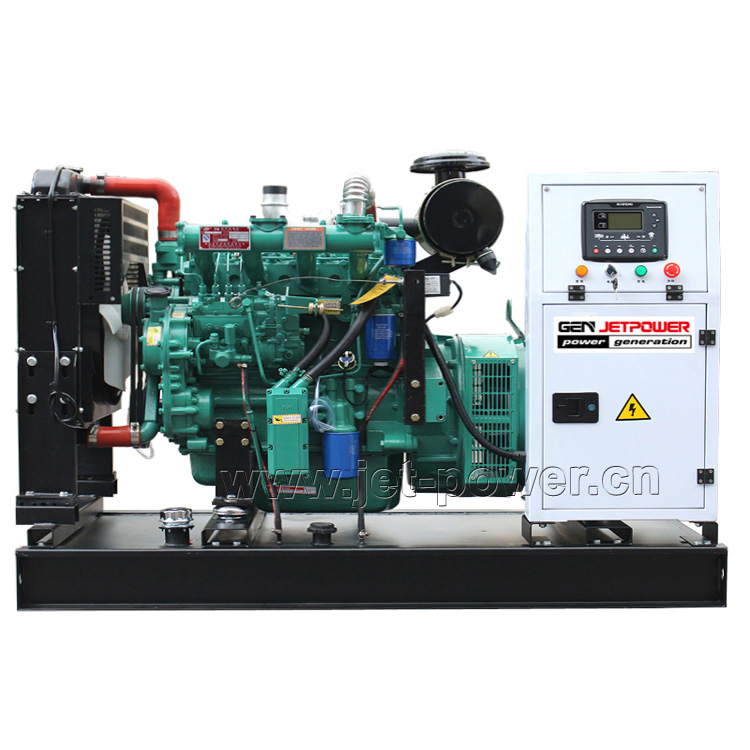

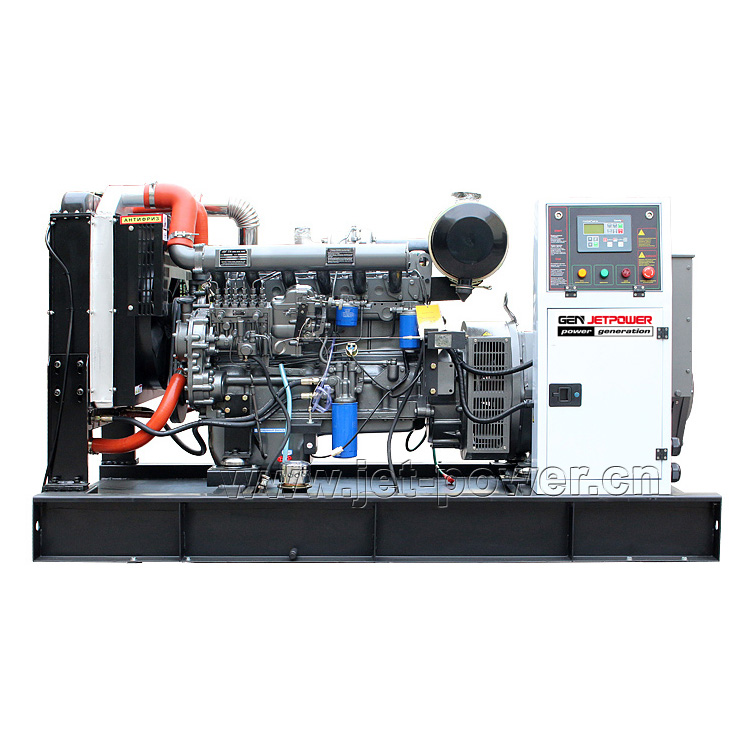

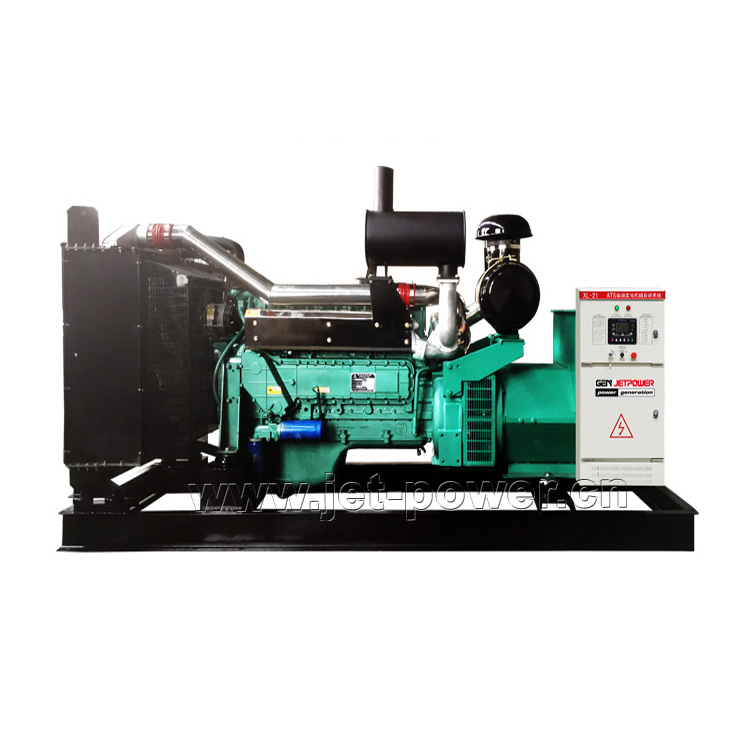

Open Diesel Generator

Chinese Ricardo Diesel Generator Set

Output: 10kVA - 55KVA
Powered by JAPAN YANMAR
Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
Open type / Silent type
Product description: Chinese Ricardo Diesel Generator Set Power from 10KVA to 55KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.
INQUIRY

Silent diesel generator set, Powered by CHINESE RICARDO ENGINE

Soundproof diesel generator set

Safety – Stability – Economy - Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins, Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MM to 10MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm or 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

50Hz Product:

Specifications:

Model	400V / 50Hz / 1500RPM					Ricardo Diesel Engine				Alternator
	Standby output		Prime Output		400V	Model / Output	Engine Brand	Engine type		Stamford type
	KVA	KW	KVA	KW	A	Model / Output	Engine Brand	No. of Cylinder	Governor	Brushless type
GF-11	11	9	10	8	14	K2105D	CHINESE RICARDO ENGINE	L2	Mechanical	JET164B
GF-14	14	11	13	10	18	K2105D		L2	Mechanical	JET164C
GF-17	17	13	15	12	22	K2105D		L4	Mechanical	JET164D
GF-21	21	17	19	15	27	K4100D		L4	Mechanical	JET184D
GF-25	25	20	23	18	32	K4100D		L4	Mechanical	JET184E
GF-28	28	22	25	20	36	K4100D		L4	Mechanical	JET184F
GF-33	33	26	30	24	43	K4100D		L4	Mechanical	JET184G
GF-41	41	33	38	30	54	K4100ZD		L4	Mechanical	JET184H
GF-55	55	44	50	40	72	N4105ZD		L4	Mechanical	JET224D
GF-70	69	55	63	50	90	N4105ZLD		L4	Mechanical	JET224E
GF-70	69	55	63	50	90	R4105AZD		L4	Mechanical	JET224E
GF-83	83	66	75	60	108	R4110ZD		L4	Mechanical	JET224F
GF-96	96	77	88	70	126	R4110AZLD		L4	Mechanical	JET224G
GF-100	96	77	88	70	126	R6105ZD		L6	Mechanical	JET224G
GF-110	110	88	100	80	144	R6105AZLD		L6	Mechanical	JET274C
GF-125	125	100	113	90	162	R6105AZLD		L6	Mechanical	JET274D
GF-138	138	110	125	100	180	R6105IZLD		L6	Mechanical	JET274D1
GF-165	165	132	150	120	217	R6110ZLD		L6	Mechanical	JET274F
GF-206	206	165	188	150	271	R6113ZLD		L6	Mechanical	JET274G
GF-250	250	200	225	180	325	R6126ZLD		L6	Mechanical	JET274J
GF-275	275	220	250	200	361	R6126ZLD-1		L6	Electric	JET274K
GF-330	330	264	300	240	433	618ZLD		L6	Electric	JET444D
GF-358	358	286	325	260	469	618AZLD		L6	Electric	JET444E
GF-413	413	330	375	300	541	618AZLD-1		L6	Electric	JET444FS
GF-440	440	352	400	320	577	618AZLD-1		L6	Electric	JET444F
