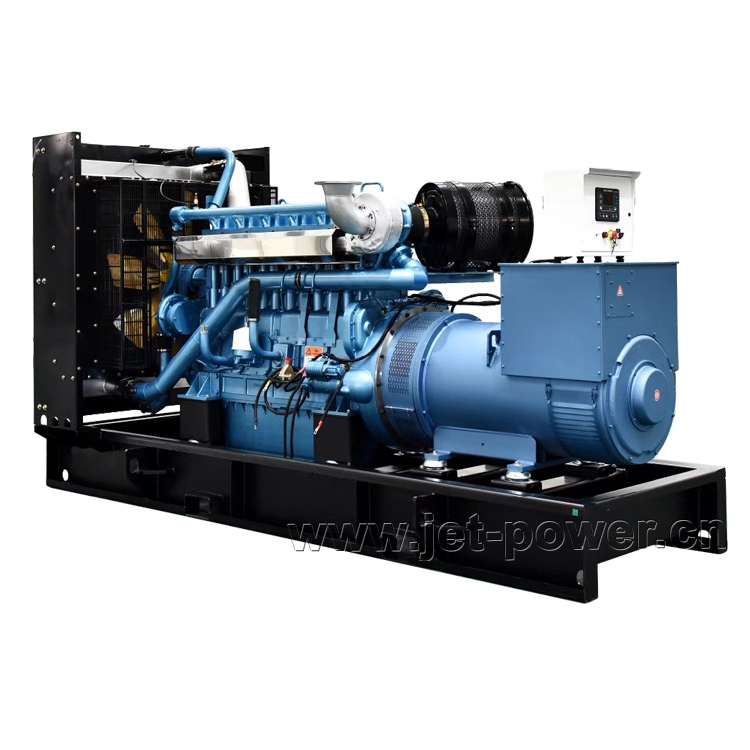

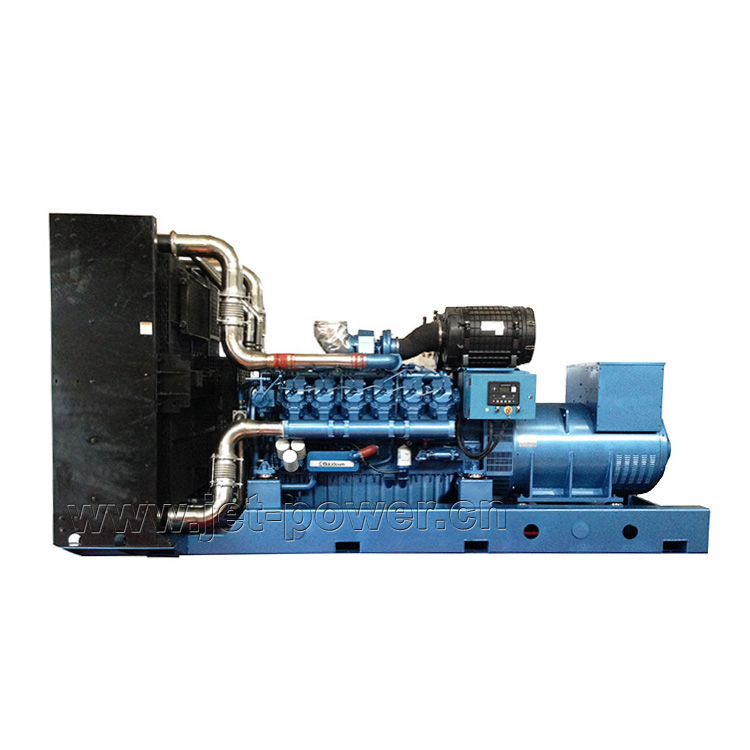

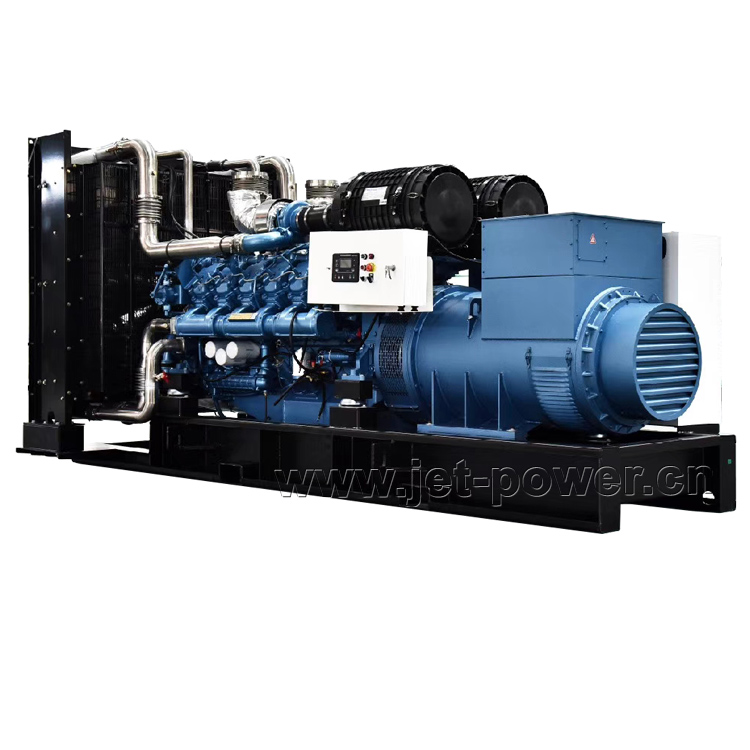

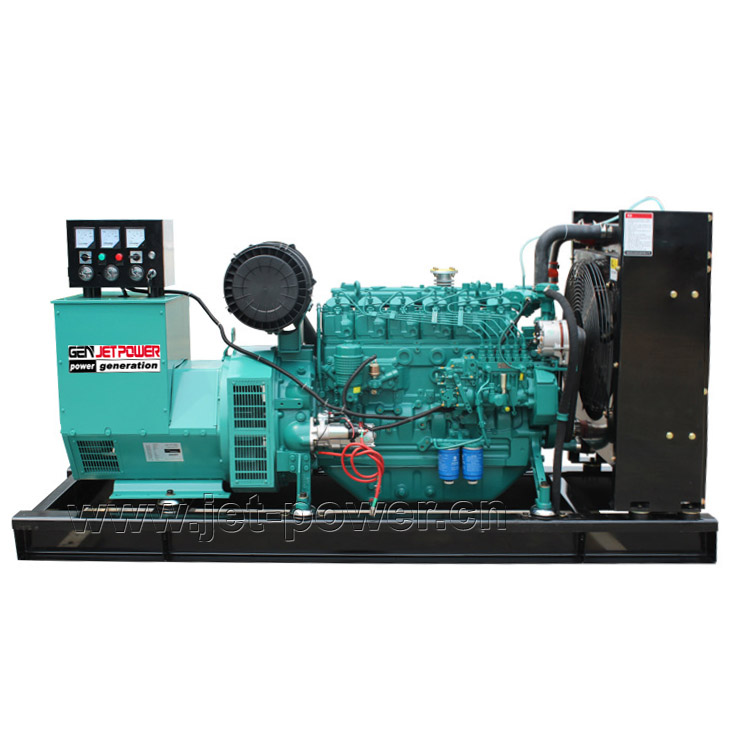

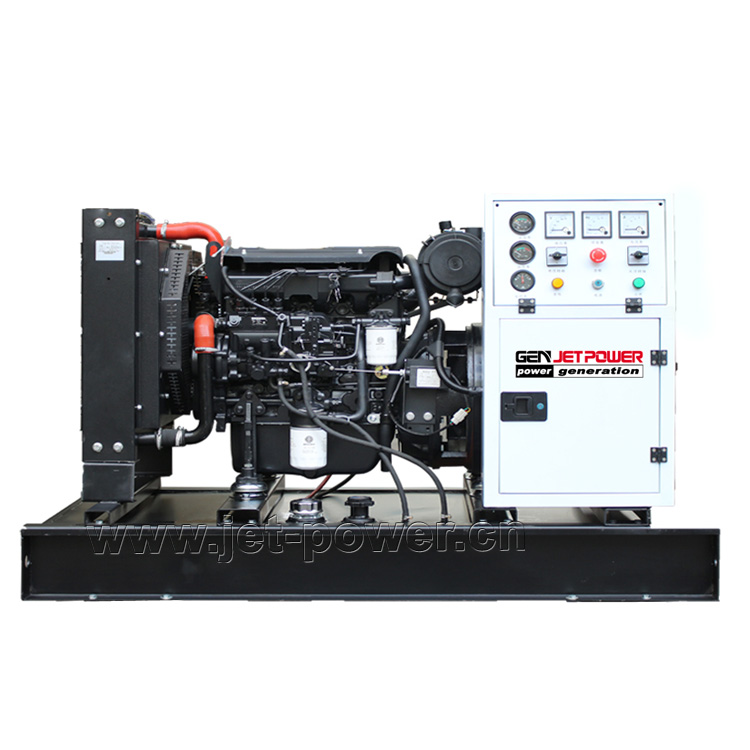

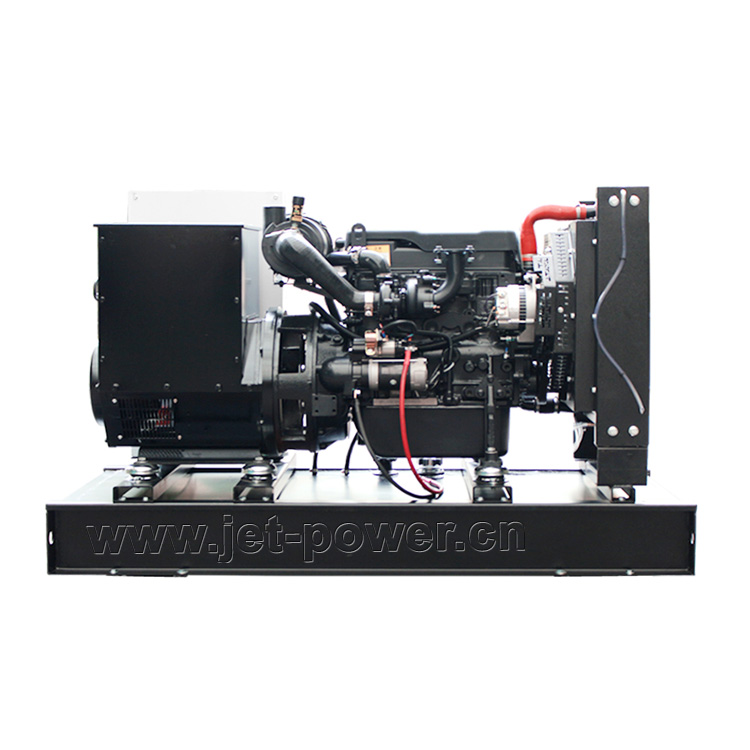

Open Diesel Generator

WEICHAI Diesel Generator Set

Output: 10kVA - 1400KVA
Powered by WEICHAI ENGINE
Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
Open type / Silent type
Product description: WEICHAI Diesel Generator Set Power from 63KVA to 1400KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.
INQUIRY

Silent diesel generator set, Powered by WEICHAI ENGINE

Soundproof diesel generator set

Safety – Stability – Economy - Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins, Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MM to 10MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm or 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

50Hz Product:

Specifications:

Model	400V / 50Hz / 1500RPM				WEICHAI Diesel Engine 1500rpm					Fuel Consumption @ 100% Load	Alternator
	Standby output		Prime Output		Model	No. of Cylinder	Governor	Bore×Stroke	Displacement	Fuel Consumption @ 100% Load	Brushless Alternator
	KVA	KW	KVA	KW	Model	No. of Cylinder	Governor	(MM)	(L)	(L/H)	Brushless Alternator
WP-11	11	8.8	10	8	WP2.1D18E2	4L	Mechanical	85×92	2.088	2	JET164B
WP-14	14	11	12.5	10	WP2.1D18E2	4L	Mechanical	85×92	2.088	2.5	JET164C
WP-17	17	13.2	15	12	WP2.1D18E2	4L	Mechanical	85×92	2.088	3	JET164D
WP-22	22	17.6	20	16	WP2.3D25E200	4L	Mechanical	90×100	2.5	4	JET184E
WP-28	28	22	25	20	WP2.3D33E200	4L	Mechanical	102×118	2.5	5	JET184F
WP-33	33	26.4	30	24	WP2.3D33E200	4L	Mechanical	102×118	2.5	6	JET184G
WP-41	41	33	38	30	WP2.3D40E200	4L	Mechanical	105×125	2.5	7.5	JET184H
WP-50	50	40	45	36	WP2.3D48E200	4L	Mechanical	105×125	2.5	8.5	JET224C
WP-55	55	44	50	40	WP4.1D66E200	4L	Mechanical	105×130	4.5	10	JET224D
WP-70	69	55	63	50	WP4.1D66E200	4L	Mechanical	105×130	4.5	12.5	JET224E
WP-83	83	66	75	60	WP4.1D80E200	4L	Mechanical	105×130	4.5	14.5	JET224G
WP-100	100	80	90	72	WP4.1D100E200	4L	Mechanical	105×130	4.5	16	JET224G1
WP-110	110	88	100	80	WP4.1D100E200	4L	Mechanical	105×130	4.5	20	JET274C
WP-125	125	100	114	91	WP6D132E200	6L	Mechanical	105×130	6.75	22.5	JET274D
WP-138	138	110	125	100	WP6D132E200	6L	Mechanical	105×130	6.75	25	JET274D1
WP-165	165	132	150	120	WP6D152E200	6L	Mechanical	105×130	6.75	30	JET274F
WP-206	206	165	188	150	WP10D200E200	6L	Mechanical	126×130	9.726	43.6	JET274H
WP-250	250	200	225	180	WP10D238E200	6L	Mechanical	126×130	9.726	52.7	JET274J
WP-275	275	220	250	200	WP10D264E200	6L	Mechanical	126×130	9.726	59.3	JET274K
WP-344	344	275	313	250	WP12D317E200	6L	Mechanical	126×155	11.596	68.7	JET444E
WP-420	420	336	380	304	WP13D385E200	6L	Mechanical	127×165	12.54	85	JET444FS
WP-440	440	352	400	320	WP13D385E200	6L	Mechanical	127×165	12.54	89	JET444F
WP-500	500	400	450	360	6M26D447E200	6L	Electric	150×150	15.9	93	JET544C
WP-550	550	440	500	400	6M26D484E200	6L	Electric	150×150	15.9	96.8	JET544D
WP-660	660	528	600	480	6M33D572E200	6L	Electric	150×185	19.6	104	JET544E
WP-688	688	550	625	500	6M33D605E200	6L	Electric	150×185	19.6	121	JET544FS
WP-825	825	660	750	600	12M26D792E200	12V	Electric	150×150	31.8	139	JET634B
WP-880	880	704	800	640	12M26D792E200	12V	Electric	150×150	31.8	150	JET634C
WP-1000	1000	800	910	728	12M26D902E200	12V	Electric	150×150	31.8	164	JET634D
WP-1100	1100	880	1000	800	12M26D968E200	12V	Electric	150×150	31.8	176	JET634E
WP-1250	1250	1000	1150	920	12M33D1108E200	12V	Electric	150×185	39.2	202	JET634F
WP-1400	1400	1120	1250	1000	12M33D1210E200	12V	Electric	150×185	39.2	220	JET634G
