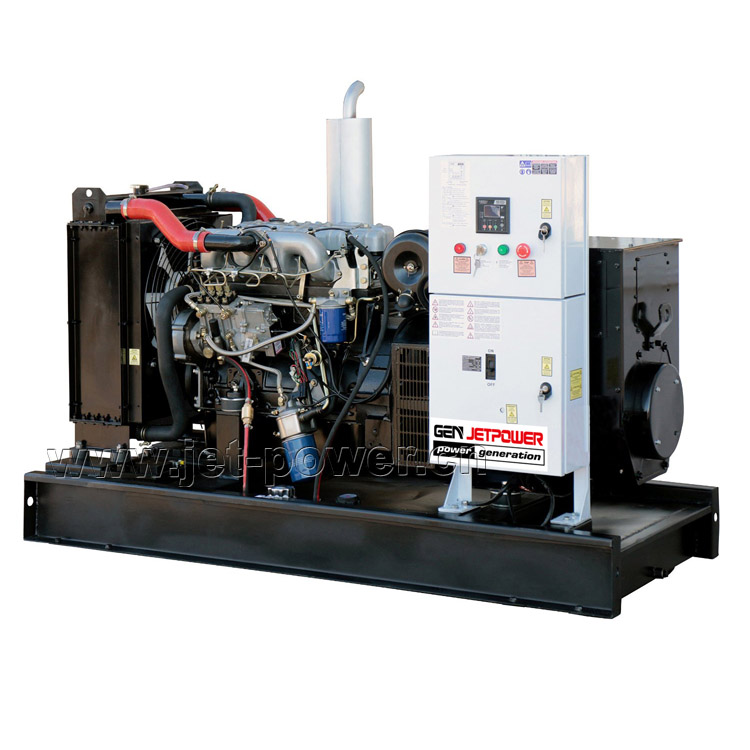

Open Diesel Generator

60Hz YANGDONG Diesel Generator Set

Output: 10kVA - 55KVA
Powered by YANGDONG
Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
Open type / Silent type
Product description: YANGDONG Diesel Generator Set Power from 10KVA to 55KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.
INQUIRY

Silent diesel generator set, Powered by YANGDONG ENGINE

Soundproof diesel generator set

Safety – Stability – Economy - Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins, Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MM to 6MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm or 60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level: ≤1000 meters

Ambient air temperature: ≤40°C

Relative air humidity: ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U, DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

60Hz Product

Model	440V 60Hz / 1800RPM				Yangdong Diesel Engine 1800rpm					Alternator
	Standby output		Prime Output		Model / Output	Engine type		Displacement	Bore×Stroke	Brushless Alternator
	KVA	KW	KVA	KW	Model / Output	No. of Cylinder	Governor	(L)	(MM)	Brushless Alternator
YD-11	12	10	11	9	YD385D	L3	Mechanical	1.532	85×90	JET164B
YD-14	15	12	14	11	YD385D	L3	Mechanical	1.532	85×90	JET164C
YD-16	18	14	16	13	YD480D	L4	Mechanical	1.809	80×90	JET164D
YD-20	22	18	20	16	YND485D	L4	Mechanical	2.043	85×90	JET164D
YD-25	28	22	25	20	YSD490D	L4	Mechanical	2.54	90×100	JET184E
YD-30	33	26	30	24	Y4100D	L4	Mechanical	3.298	100×105	JET184F
YD-38	41	33	38	30	Y4102D	L4	Mechanical	3.857	102×118	JET184G
YD-50	55	44	50	40	Y4102ZD	L4	Mechanical	3.857	102×118	JET184J
