Open Diesel Generator

  • 50Hz QuanChai Diesel Generator Set

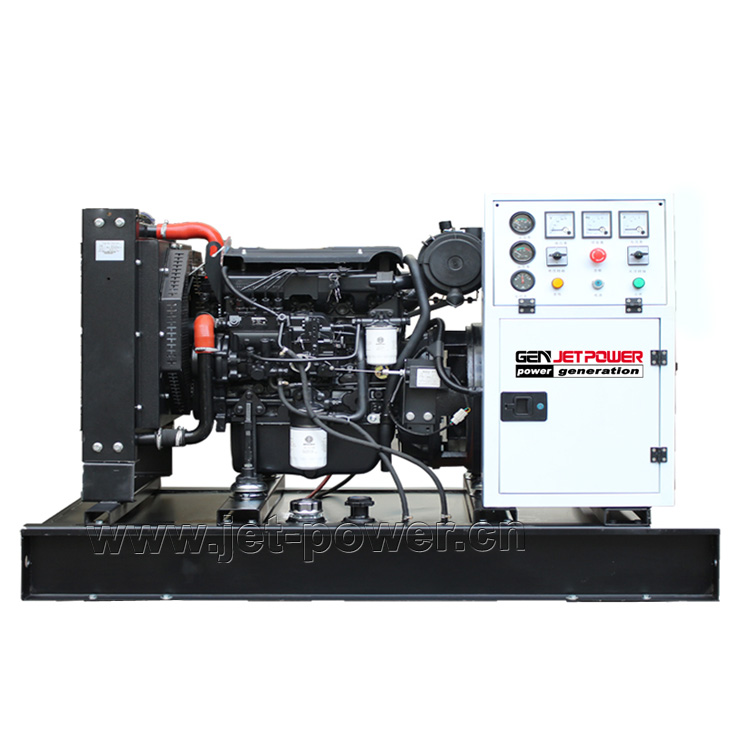

50Hz QuanChai Diesel Generator Set

50Hz QuanChai Diesel Generator Set

  • Output: 10kVA - 41KVA
  • Powered by QUANCHAI
  • Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
  • Open type / Silent type
  • Product description: QuanChai Diesel Generator Set Power from 10KVA to 41KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.
  • INQUIRY

Silent diesel generator set, Powered by QuanChai ENGINE

Soundproof diesel generator set

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MM to 6MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set   Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm  or  60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level:  ≤1000 meters

Ambient air temperature:  ≤40°C

Relative air humidity:  ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U,  DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

50Hz Product:

Model 400V / 50Hz / 1500RPM QuanChai Diesel Engine 1500rpm Alternator
Standby output Prime Output Model Engine type Displacement Bore×Stroke Brushless Alternator
KVA KW KVA KW No. of Cylinder Governor (L) (MM)
QC-11 11 9 10 8 QC385D L3 Mechanical 1.532 85×90 JET164B
QC-14 14 11 13 10 QC480D L4 Mechanical 1.809 80×90 JET164C
QC-17 17 13 15 12 N485D L4 Mechanical 2.156 85×95 JET164D
QC-22 22 18 20 16 N490D L4 Mechanical 2.67 90×105 JET184E
QC-28 28 22 25 20 QC498 L4 Mechanical 2.98 98×105 JET184F
QC-33 33 26 30 24 QC4102D L4 Mechanical 3.857 102×118 JET184G
QC-41 41 33 38 30 QC-4105D L4 Mechanical 4.087 105×118 JET184H
