Open Diesel Generator

  • Air Cooled Deutz Diesel Generator Set

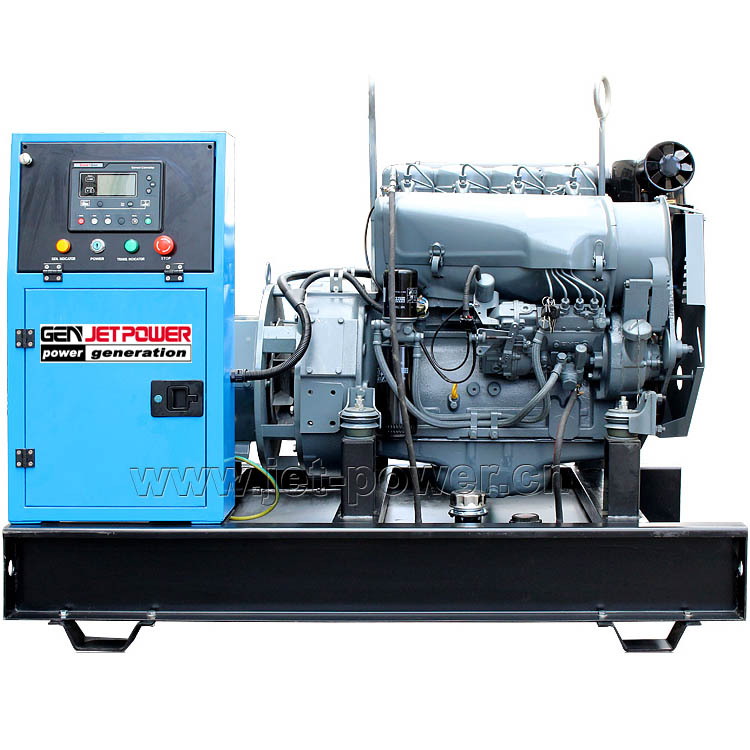

Air Cooled Deutz Diesel Generator Set

Air Cooled Deutz Diesel Generator Set

  • Output: 25kVA - 825KVA
  • Powered by DEUTZ
  • Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
  • Open type / Silent type
  • Product description: Air Cooled Deutz Diesel Generator Set Power from 15KVA to 138KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.

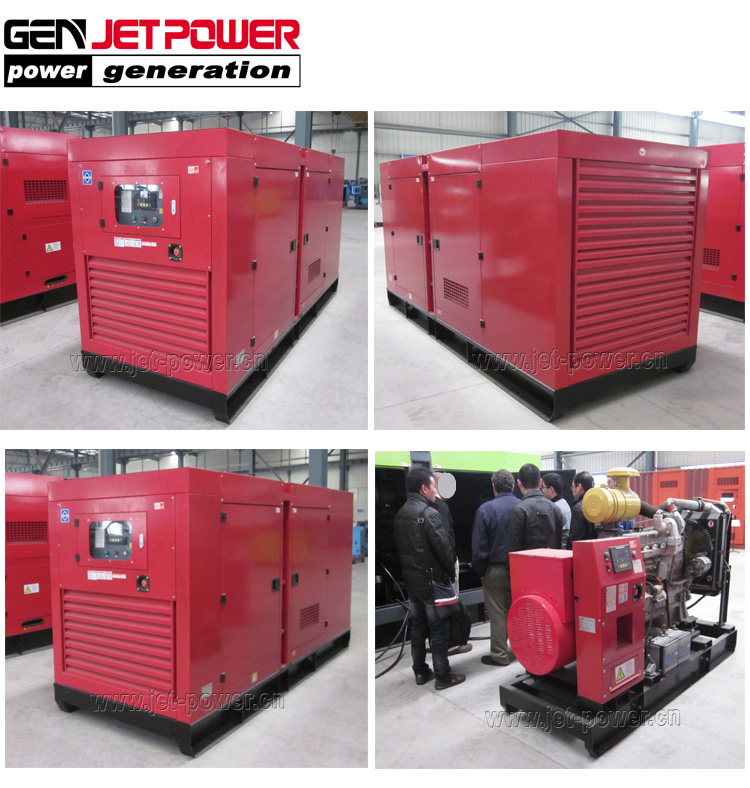

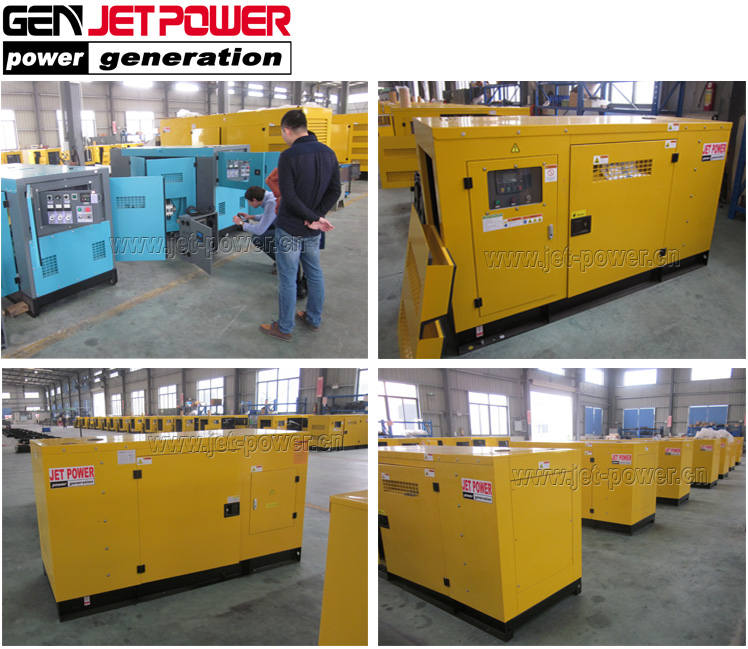

Silent diesel generator set, Powered by AIR COOLED DEUTZ ENGINE

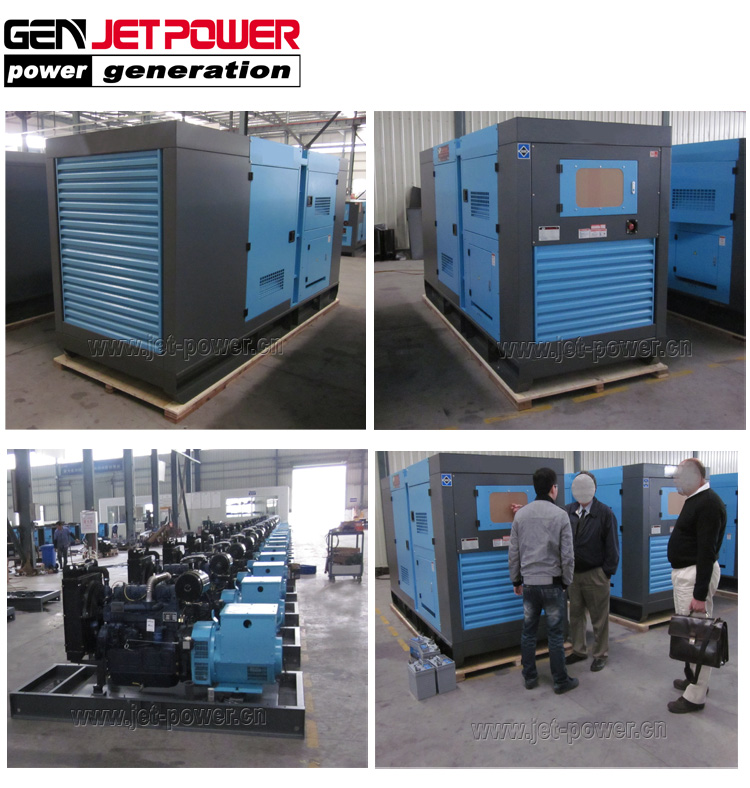

Soundproof diesel generator set

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

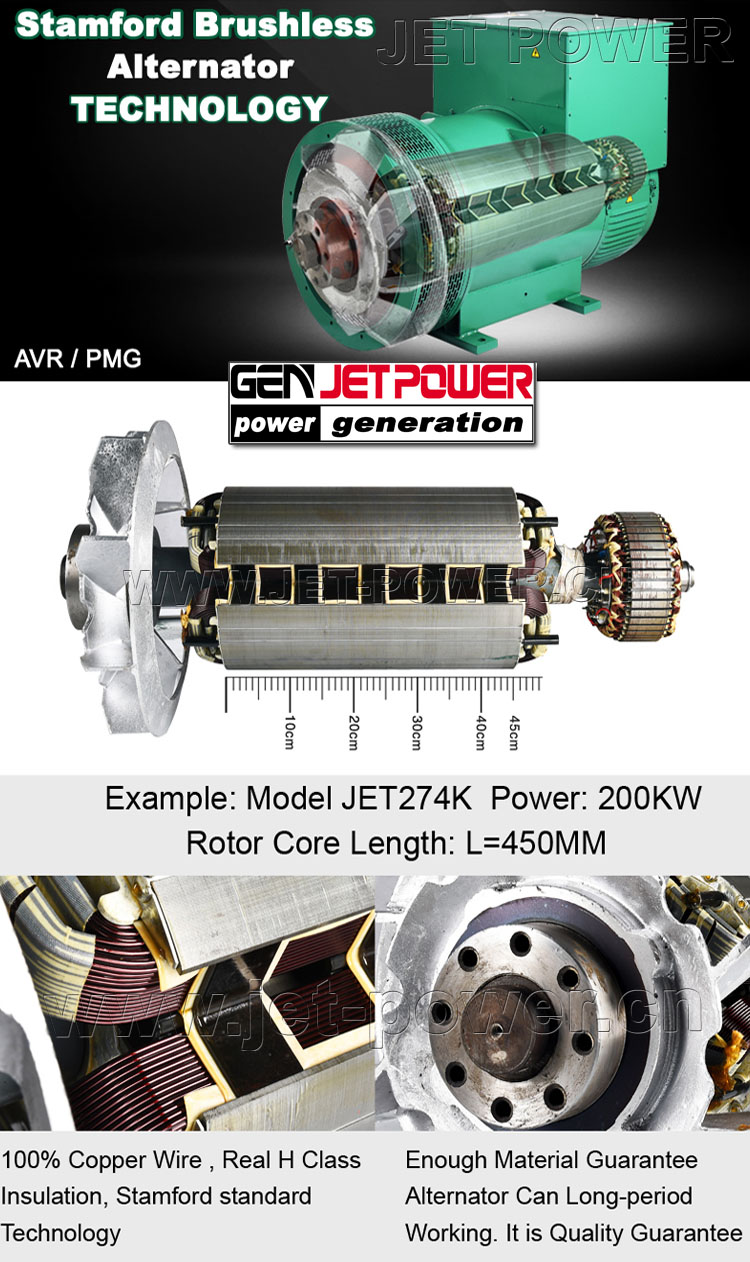

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

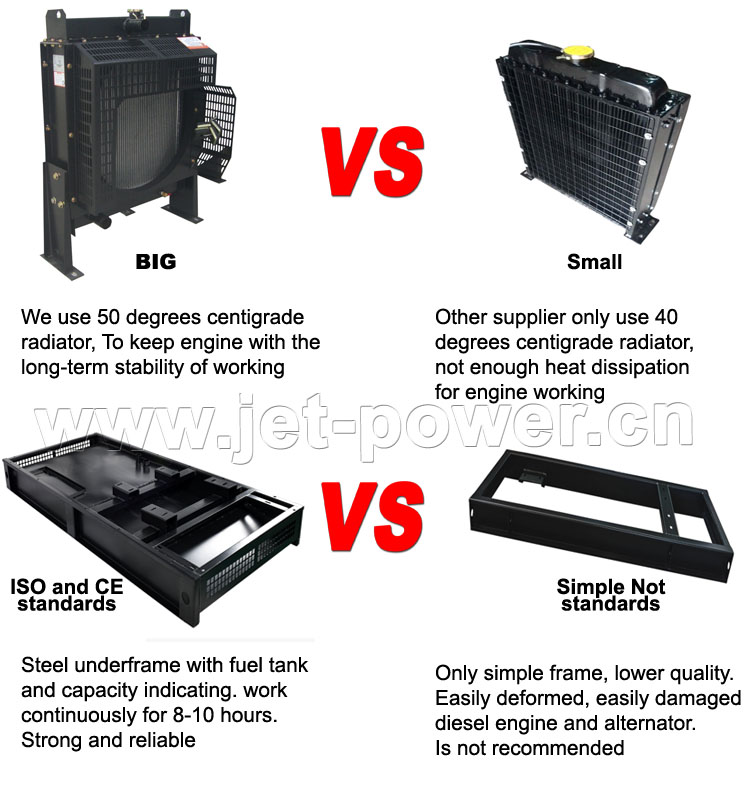

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

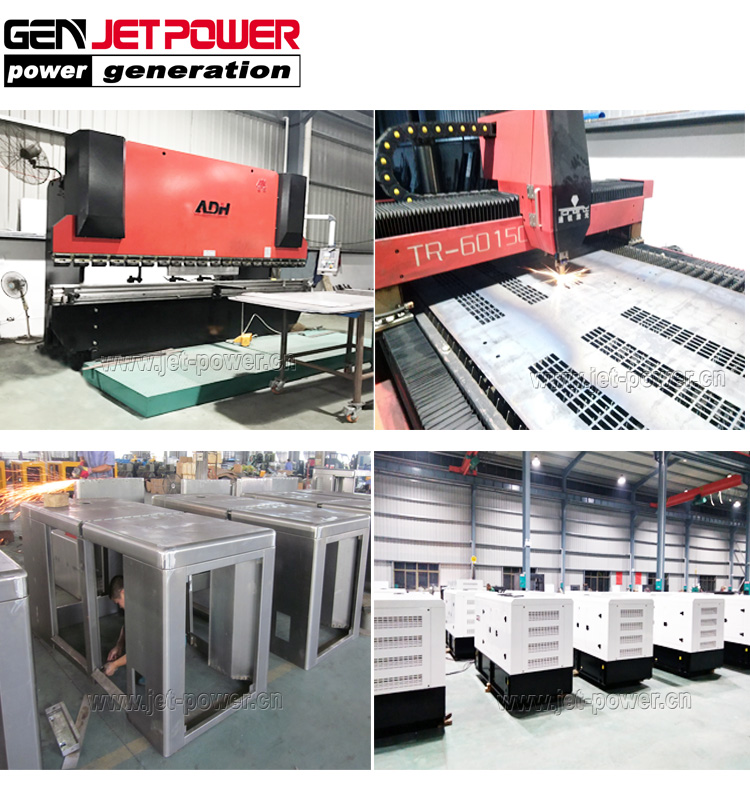

5. Generator set use High-quality steel are thickness canopy --2MMto6MM

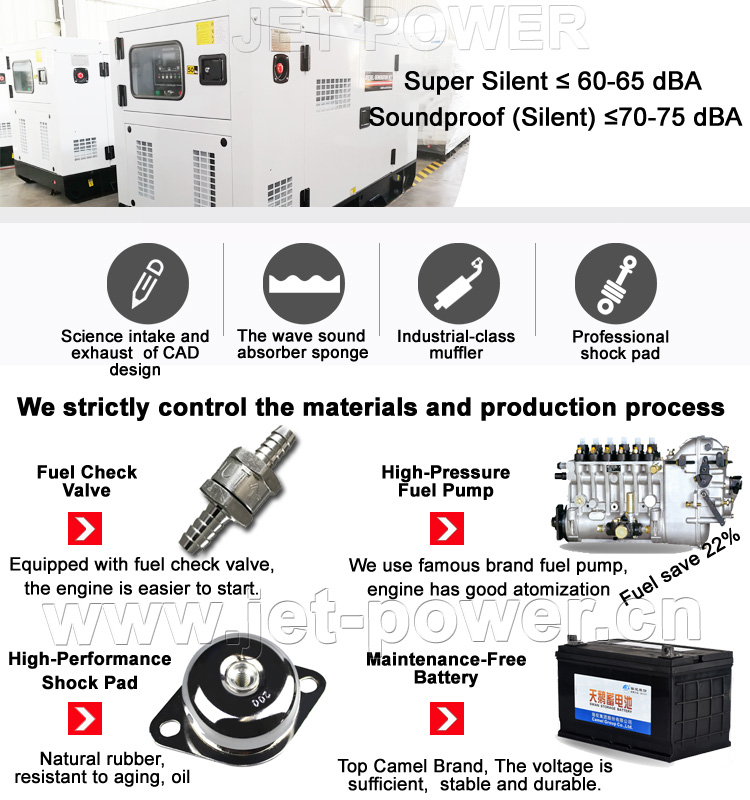

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set   Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm  or  60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level:  ≤1000 meters

Ambient air temperature:  ≤40°C

Relative air humidity:  ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U,  DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system


Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.


Standby output Prime Output Model Engine type Displacement Bore×Stroke Brushless Alternator
KVA KW KVA KW No. of Cylinder Governor (L) (MM)
AD-17 17 13 15 12 F2L912 L2 Mech. 1.88 100x120 JET164D
AD-28 28 22 25 20 F3L912 L3 Mech. 2.828 100x120 JET184F
AD-33 33 26 30 24 F4L912 L4 Mech. 3.77 100x120 JET184G
AD-44 44 35 40 32 F4L912T L4 Mech. 3.77 100x120 JET184J
AD-55 55 44 50 40 F6L912 L6 Mech. 5.655 100x120 JET224D
AD-69 69 55 63 50 F6L912T L6 Mech. 5.655 100x120 JET224E
AD-103 103 83 94 75 F6L913 L6 Electric 6.128 102x125 JET274C
AD-138 138 110 125 100 F6L913C L6 Electric 6.128 102x125 JET274ES
