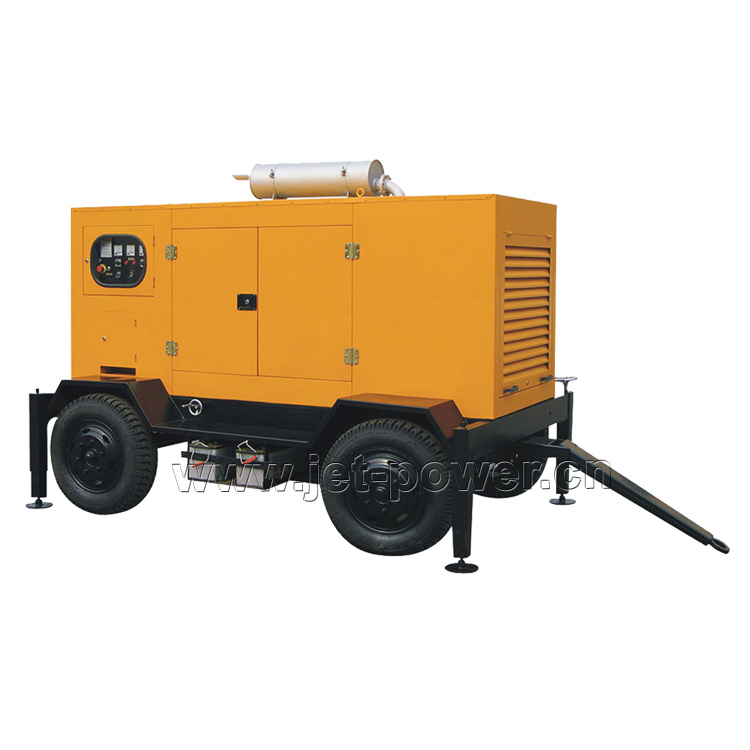

Trailer Diesel Generator
Trailer Type diesel generator set with 4 wheels
- Powered by Perkins Cummins
- Power:80KW ~ 520KW
- With 4 wheels
- 4 * supporting leg
- Product description: Trailer Type diesel generator set / Mobile diesel generator set Power:80KW ~ 520KW with 4 wheels drive
Trailer Typediesel generator set / Mobile diesel generator set
Mobile trailer power station is an independent, complete power generation device and system.
Performance:
Suitable for outdoor or mobility work
The good sealing, rainproof, use safety of compartments body
Towing power device
The trailer chassis using steel plate spring vibration
Trailer chassis configuration in the four corners have adjustable support from foot to foot device , and the front support guide wheel.
The maintenance platform design of Cars on both sides to facilitate maintenance
Trailer brake equipped with the driver brake, pneumatic or hydraulic brake etc. brake device
With road lights system so as to meet the requirements of road traffic safety
Manual or electric cable hinged plate and cable, aviation plug, etc can be equipped with according to the request of user.
Safety – Stability – Economy - Reliability Power
1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins, Deutz , LovoL , Lister Petter, Doosan, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Marathon, JET, Mecc alte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。
Product Warranty policy
JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
| Trailer model | Prime Power | Specification | Trailer size | Base frame size | Generator weight (KG) |
| （L*W*H）mm | (L*W)mm | ||||
| T1 | 20-45KW | one axle with two wheels, front tow bar with wheels,triangle steering tow bar, steel base frame to support the generator, spring system, supporting legs, braking system and road lighting system, | 3250*1630*840 | 2250*1000 | 1200 |
| 80KW | 3900*1770*900 | 2900*1100 | 1740 | ||
| 100KW-110KW | 4150*1770*900 | 3150*1100 | 1850 | ||
| T2 | 120-150KW | two axles with four wheels, triangle steering tow bar, steel base frame to support generator, supporting legs, braking system, road lignting system | 4300*1770*900 | 3300*1100 | 2300 |
| 160-200KW | 4600*1870*900 | 3600*1200 | 2600 | ||
| T3 | 200-320KW | two axles with four wheels,triangle steering tow bar,steel base frame to support generator,supporting legs, braking system, road lignting system | 5200*2100*1100 | 3600*1400 | 4400 |
| 360-400KW | 5400*2200*1150 | 3800*1500 | 5300 | ||
| 450-480KW | 5500*2500*1150 | 3900*1800 | 5550 | ||
| 500KW | 5600*2500*1150 | 4000*1800 | 5550 | ||
| 520KW | 5800*2700*1150 | 4200*2000 | 5900 |
