Light Tower Generator
Mobile Light Tower Generator Set
- Powered by Perkins,Kubota,Yanmar
- Light power 4000W
- height of mast: 9M
- Manual / Auto mast
- Product description: Mobile Light Tower Generator Set, Light 4 * 1000W LED light Stable performance high safety high adaptability,

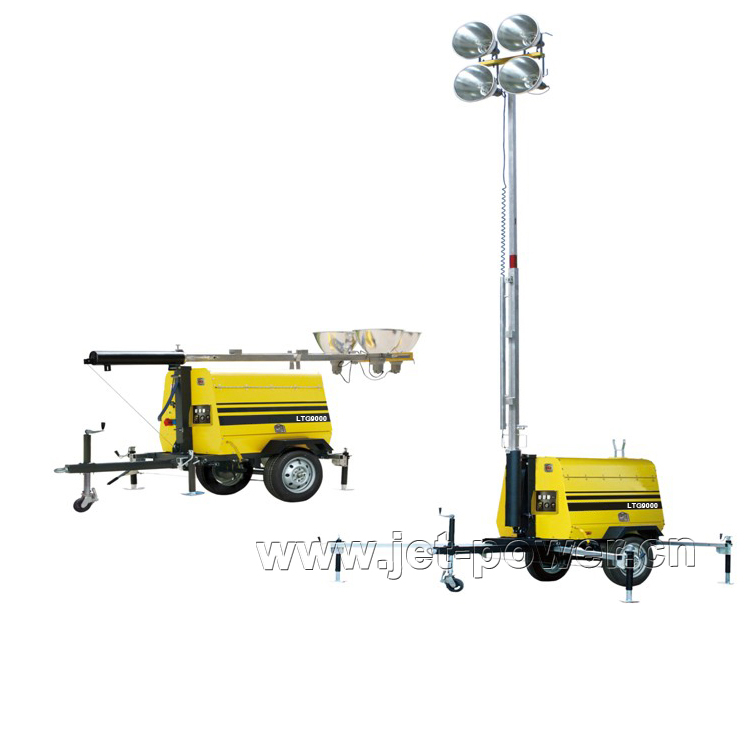

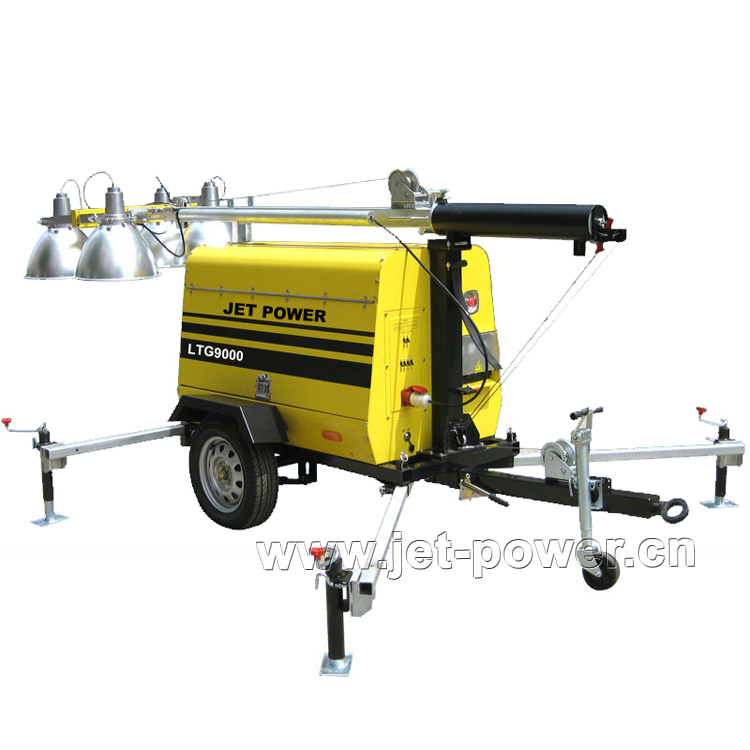

Mobile Light Tower Generator Set
Feature:
Stable performance high safety high adaptability,
High lumen energy conservation,
Equipped with world famous engine and alternator
All-weather canopy and manual / Auto mast
Wind-proof frame design
Intelligent control system, Alarm system
Equipped 5* supporting leg and with brake system
Safety – Stability – Economy - Reliability Power
1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins, Deutz , LovoL , Lister Petter, Doosan, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.
2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Marathon, JET, Mecc alte.
3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working
4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,
Manufacturing Standard
GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。
Product Warranty policy
JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.
Specifications:
Model | LTG9000 |
Mast | |
Maximum height of mast | 9m |
Elevation | Mechanical / Electric |
Raising/lowering mast | Winch / Button |
Turning angle | 358 degrees |
Stage | 3 ( 2-3 is optional) |
Maximum towing speed | 20km/h |
Maximum wind speed rating | 50 km/h |
Lighting | |
Total power of lamps | 4x1,000Watts |
Type of lamp | Metal halide |
Light capacity | 4x88,000lumen |
Voltages | 120, 220, 230, 240Volts |
Frequency | 50Hz / 60Hz |
Lifetime of lamp | 5,000hours |
Working temperature | ≤85°C |
Protection grade | IP54 |
Characteristics of generator set | |
Engine brand | PERKINS / YANMAR |
Rated power | 7.2KW 50Hz / 8KW 60Hz |
Engine model | 403D-11G / 3TNV82A-GGE |
Intake system | Natural Aspiration |
Engine speed | 50Hz 1500rpm, 60Hz 1800rpm |
Type | Vertical 3-cylinder, Water cooled Diesel |
Starting system | Electric |
Alternator | STAMFORD / Jet Power |
Fuel tank capacity | 100L |
Fuel consumption at 100% load | 2.0L/H |
Max continuous running time | 50 Hours |
Control system | Digital control panel (DEEP SEA) |
Power Outlets | 2 |
Trailer | |
Tow hitch | Ring / Ball hitch |
Stabilier Supports | 5 pcs * Manual |
Wheel Size | 16' |
wheel Qty | 2 pcs |
Brakes System | Manual |
Canopy | With two doors access for easy maintenance , Detachable Roof |
Dimension (LXWXH) & Weight | |
Storage | 2650 × 1300 × 2450mm |
Working | 2650 ×2400 ×8000mm |
Weight | 980 |
