Silent Diesel Generator

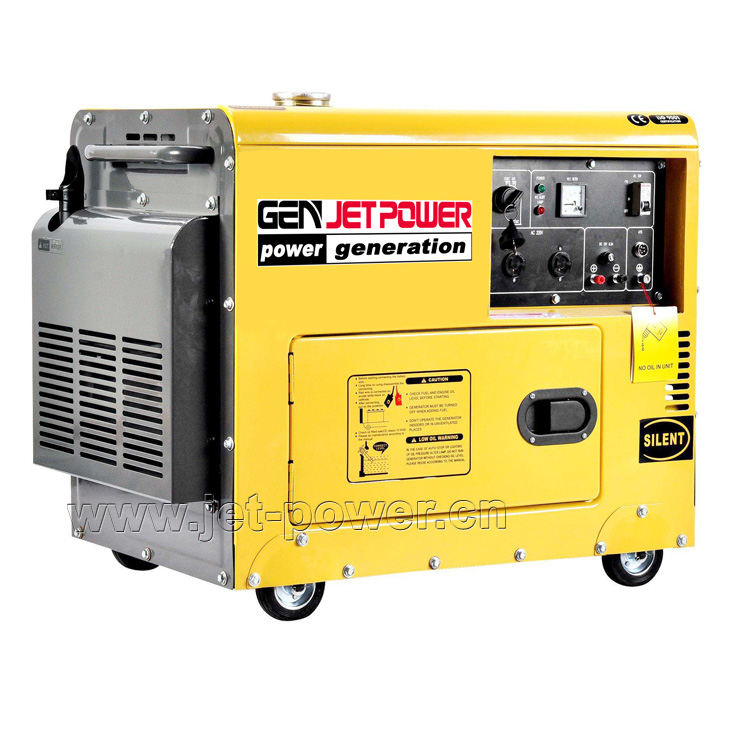

Silent Air Cooled Diesel Generator Set

Powered by Air cooled engine
Power：2.8KVA to 7.0KVA
Alternator with AVR
Silent type
Product description: Silent Air Cooled Diesel Generator Set Manual Start, Carton packing, Optional Electric start with battery, wheel kit.
INQUIRY

Small Power 2.8KVA to 7.0KVA, Powered by air cooled diesel engine.

Silent type Model	JDE3500SE		JDE6500SE		JDE7500SE		JDE8500SE		JDE9500SE
Rated frequency (Hz)	50	60	50	60	50	60	50	60	50	60
Rated output (kVA)	2.8	3.3	4.5	5	5	5.5	5.5	6	6	6.5
Max. output (kVA)	3.2	3.8	5	5.5	5.5	6	6	6.5	6.5	7
Rated Voltage (V)	230	120/240	230	120/240	230	120/240	230	120/240	230	120/240
Rated current (A)	12.2	27.5/13.8	19.6	41.7/20.8	21.7	45.8/22.9	23.9	50/25	26	54/27
DC12V output	12V / 8.3A		12V / 8.3A		12V / 8.3A		12V / 8.3A		12V / 8.3A
Rated rotation speed (r/min)	3000	3600	3000	3600	3000	3600	3000	3600	3000	3600
Phase NO.	Single phase		Single phase		Single phase		Single phase		Single phase
Power factor (Cos Φ)	1		1		1		1		1
Insulation Grade	B		B		B		B		B
Pole number	2		2		2		2		2
Excitation mode	Self-excitation & constant voltage (AVR)
Panel Type	General Panel		General Panel		General Panel		General Panel		General Panel
Noise level（7m）dB(A)	60		60		65		65		65
Structure type	Open or Silent frame		Open or Silent frame		Open or Silent frame		Open or Silent frame		Open or Silent frame
Engine Model	KM178FG		KM186FAG		KM188FG		KM188FG		KM192FG
Engine Type	Single cylinder, vertical, four-stroke, direct injection,air-cooled
Cylinder NO.-bore×stroke (mm)	1-78×62		1-86×72		1-88×75		1-88×75		1-92×75
Displacement (ml)	296		418		456		456		518
Rated power [KW/(r/min)]	3.68/3000	4.0/3600	5.7/3000	6.3/3600	7.5/3000	8.2/3600	7.5/3000	8.2/3600	8.0/3000	9.2/3600
Compression ratio	20：1		19：1		19：1		19：1		19：1
Lubrication system	Pressure splashed		Pressure splashed		Pressure splashed		Pressure splashed		Pressure splashed
Starting system (optional)	Recoil / Electric Start		Recoil / Electric Start		Recoil / Electric Start		Recoil / Electric Start		Recoil / Electric Start
Lube capacity (L)	1.1		1.65		1.65		1.65		1.65
Starting motor capacity (V-kW)	12V 0.8kW		12V 0.8kW		12V 0.8kW		12V 0.8kW		12V 0.8kW
Charging generator capacity (V-A)	12V 3A		12V 3A		12V 3A		12V 3A		12V 3A
Battery capacity (V-Ah)	12V 36Ah		12V 36Ah		12V 36Ah		12V 36Ah		12V 36Ah
Fuel consumption (g/kW.h)	≤370		≤360		≤360		≤360		≤360
Fuel tank capacity (L)	16		16		16		16		16
Continuous running time (hr)	8.5		5.5		5.5		5.5		5.5
Open type Packing size (MM)	930×530×740		930×530×740		930×530×740		930×530×740		930×530×740
Weight (Kg)	155		160		163		165		170
Loading quantity @ 20GP	72 pcs		72 pcs		72 pcs		72 pcs		72 pcs
