Silent Diesel Generator

  • Denyo Type Silent Diesel Generator Set
  • Denyo Type Silent Diesel Generator Set
  • Denyo Type Silent Diesel Generator Set
  • Denyo Type Silent Diesel Generator Set
  • Denyo Type Silent Diesel Generator Set
  • Denyo Type Silent Diesel Generator Set
Denyo Type Silent Diesel Generator SetDenyo Type Silent Diesel Generator SetDenyo Type Silent Diesel Generator SetDenyo Type Silent Diesel Generator SetDenyo Type Silent Diesel Generator SetDenyo Type Silent Diesel Generator Set

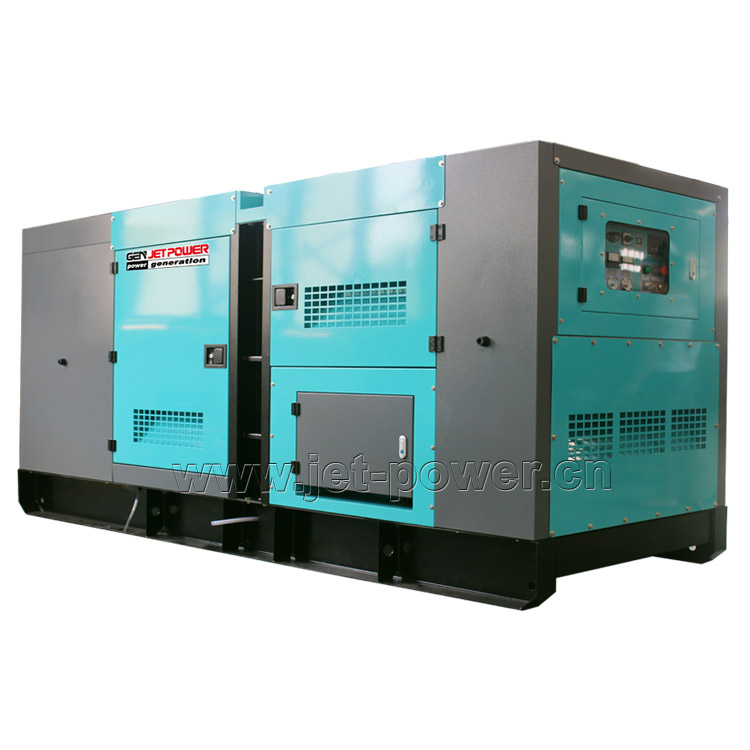

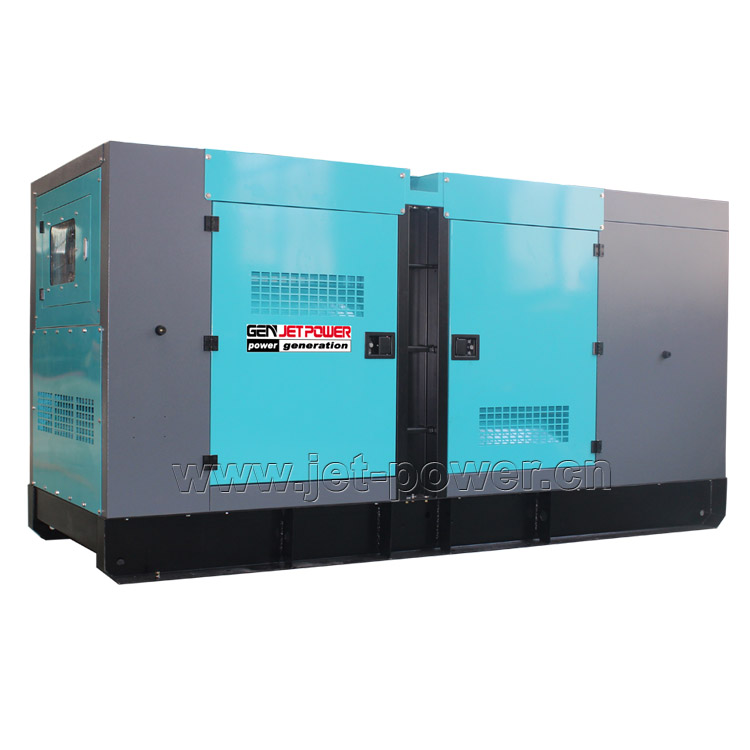

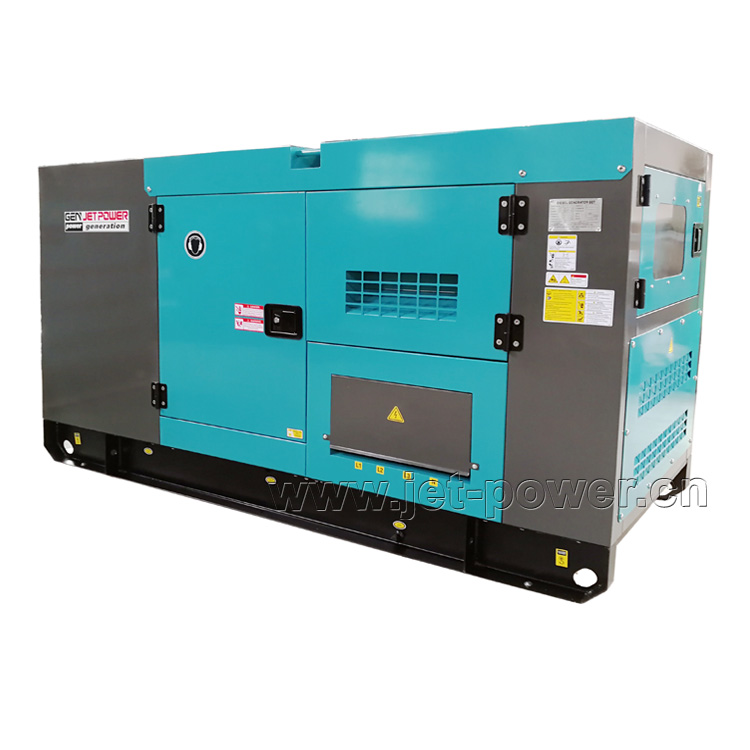

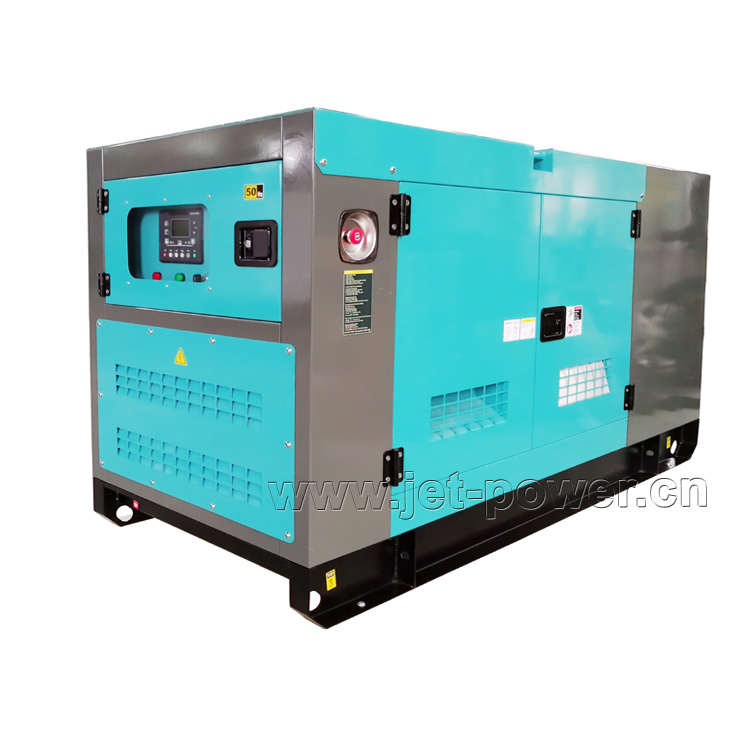

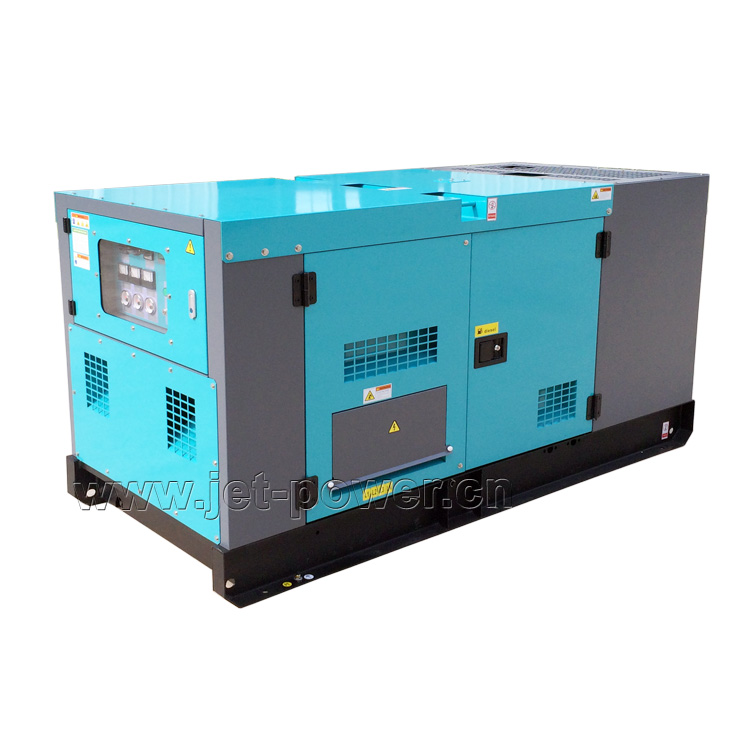

Denyo Type Silent Diesel Generator Set

  • Output:9kVA - 1250KVA
  • Powered by Cummins, Yanmar, Isuzu, Kubota, Ricardo
  • Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
  • Silent type, Soundproof, Supper Silent
  • Product description: Silent type, Soundproof, Supper Silent Diesel Generator, Power from 9KVA to 1250KVA. Denyo Design, Suitable for southeast Asian market optional: Silent type, Soundproof, Supper Silent optional:
  • INQUIRY

Silent type, Soundproof, Supper Silent Diesel Generator,

Denyo type Design

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MM to 10MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

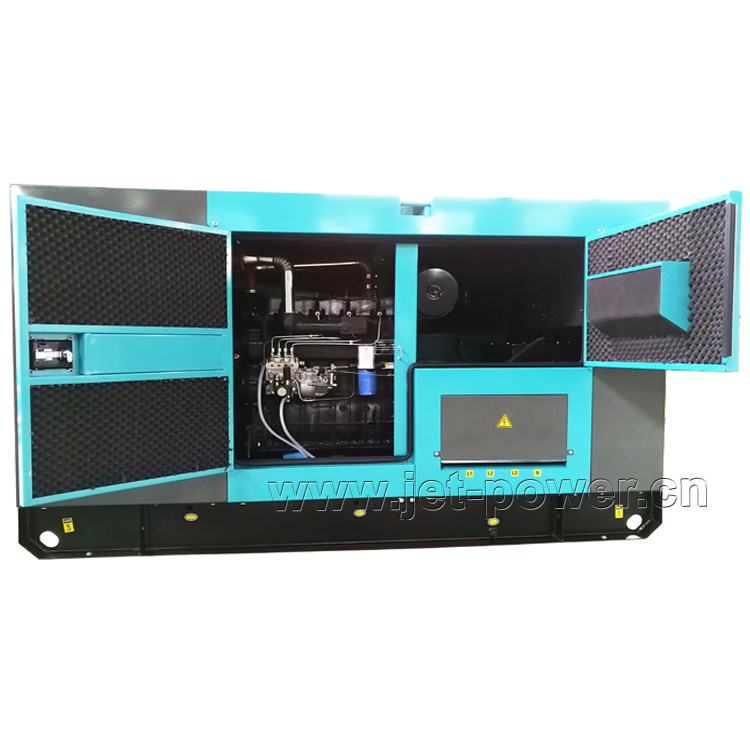

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set   Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm  or  60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level:  ≤1000 meters

Ambient air temperature:  ≤40°C

Relative air humidity:  ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U,  DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system

Accessories

Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.


Specifications:

Model 400V / 50Hz / 1500RPM Perkins Diesel Engine 1500rpm Fuel Consumption @ 100% Load Alternator
Standby output Prime Output Model No. of Cylinder Displacement Original Stamford
KVA KW KVA KW (L) (L/H)
P-10 10 8 9 7 403A-11G1 3L 1.1 2.6 PI 044E
P-14 14 11 13 10 403A-15G1 3L 1.5 3.48 PI 044F
P-17 17 14 15 12 403A-15G2 3L 1.5 3.5 PI 044G
P-22 22 18 20 16 404A-22G1 4L 2.2 5.3 PI 144D
P-30 30 24 27 22 404D-22TG 4L 2.2 6.7 PI 144F
P-33 33 26 30 24 1103A-33G 3L 3.3 6.98 PI 144G
P-50 50 40 45 36 1103A-33TG1 3L 3.3 10.6 PI 144K
P-66 66 53 60 48 1104A-44TG1 4L 4.4 14.8 UCI224E
P-88 88 70 80 64 1104A-44TG2 4L 4.4 18.4 UCI224G
P-110 110 88 100 80 1104C-44TAG2 4L 4.4 20.5 UCI274C
P-150 150 120 135 108 1106A-70TG1 6L 7 29.9 UCI274E
P-165 165 132 150 120 1106A-70TAG2 6L 7 33.4 UCI274F
P-176 176 141 160 128 1106A-70TAG3 6L 7 37 UCI274F
P-200 200 160 180 144 1106A-70TAG3 6L 7 41.6 UCI274G
P-220 220 176 200 160 1106A-70TAG4 6L 7 45.8 UCI274H
P-250 250 200 225 180 1506A-E88TAG2 6L 8.8 48.6 UCDI274J
P-275 275 220 250 200 1506A-E88TAG3 6L 8.8 50 UCDI274K
P-303 303 242 275 220 1506A-E88TAG5 6L 8.8 60.2 HCI444C
P-330 330 264 300 240 1506A-E88TAG5 6L 8.8 64.9 HCI444D
P-385 385 308 350 280 2206C-E13TAG2 6L 13 70 HCI444E
P-440 440 352 400 320 2206C-E13TAG3 6L 13 82.7 HCI444F
P-500 500 400 455 364 2506C-E15TAG1 6L 15 95.6 HCI544C
P-550 550 440 500 400 2506C-E15TAG2 6L 15 106 HCI544D
P-660 660 528 600 480 2806C-E18TAG1A 6L 18 126.6 HCI544E
P-700 700 560 650 520 2806A-E18TAG2 6L 18 129.3 HCI544F
P-825 825 660 750 600 4006-23TAG2A 6L 23 152.3 LVI634B
P-880 880 704 800 640 4006-23TAG3A 6L 23 171.8 HCI634G
P-1000 1000 800 900 720 4008TAG2A 8L 30.6 188 HCI634H
P-1100 1100 880 1000 800 4008TAG2A 8L 30.6 215.2 HCI634J
P-1375 1375 1100 1250 1000 4012-46TWG2A 12V 46 258.1 LVI634G
P-1650 1650 1320 1500 1200 4012-46TAG2A 12V 46 299 PI734C
P-1875 1875 1500 1710 1368 4012-46TAG3A 12V 46 370 PI734ES
P-2000 2000 1600 1800 1440 4016-61TRG1 16V 61 385 PI734E
P-2200 2200 1760 2000 1600 4016-61TRG2 16V 61 421 PI734F
P-2500 2500 2000 2250 1800 4016-61TRG3 16V 61 473 PI734G
