Electrical Control System

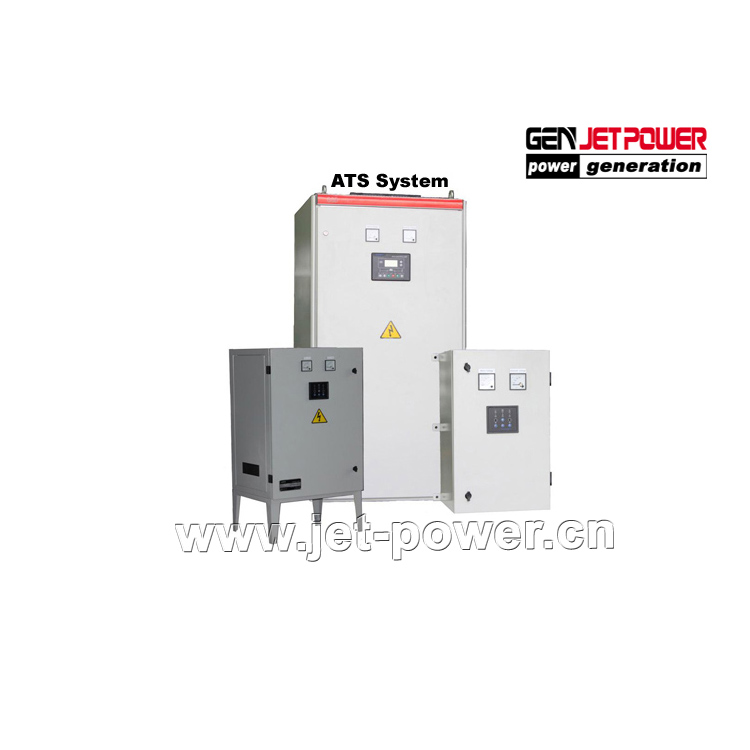

ATS - Automatic Transfer Switch System

Brand: JET POWER
40A to 3200A
with control system
Product description: Automatic transfer switch, capacity from 40A to 3200A Can be use for all generating set
INQUIRY

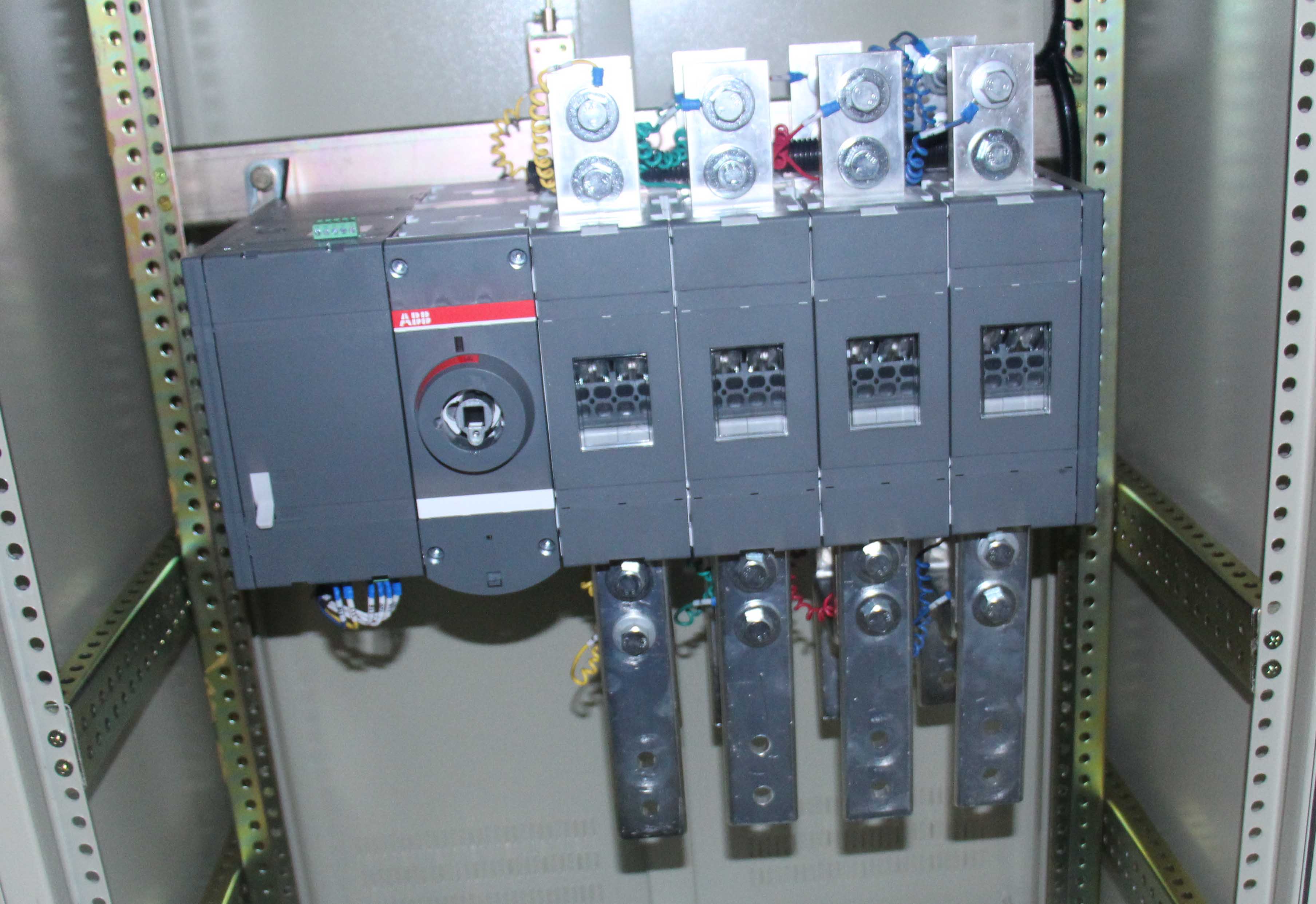

Jet Power Automatic transfer switch system cabinet adopts high quality and reliable Automatic transfer switch. It’s to transfer between prime power and standby power.

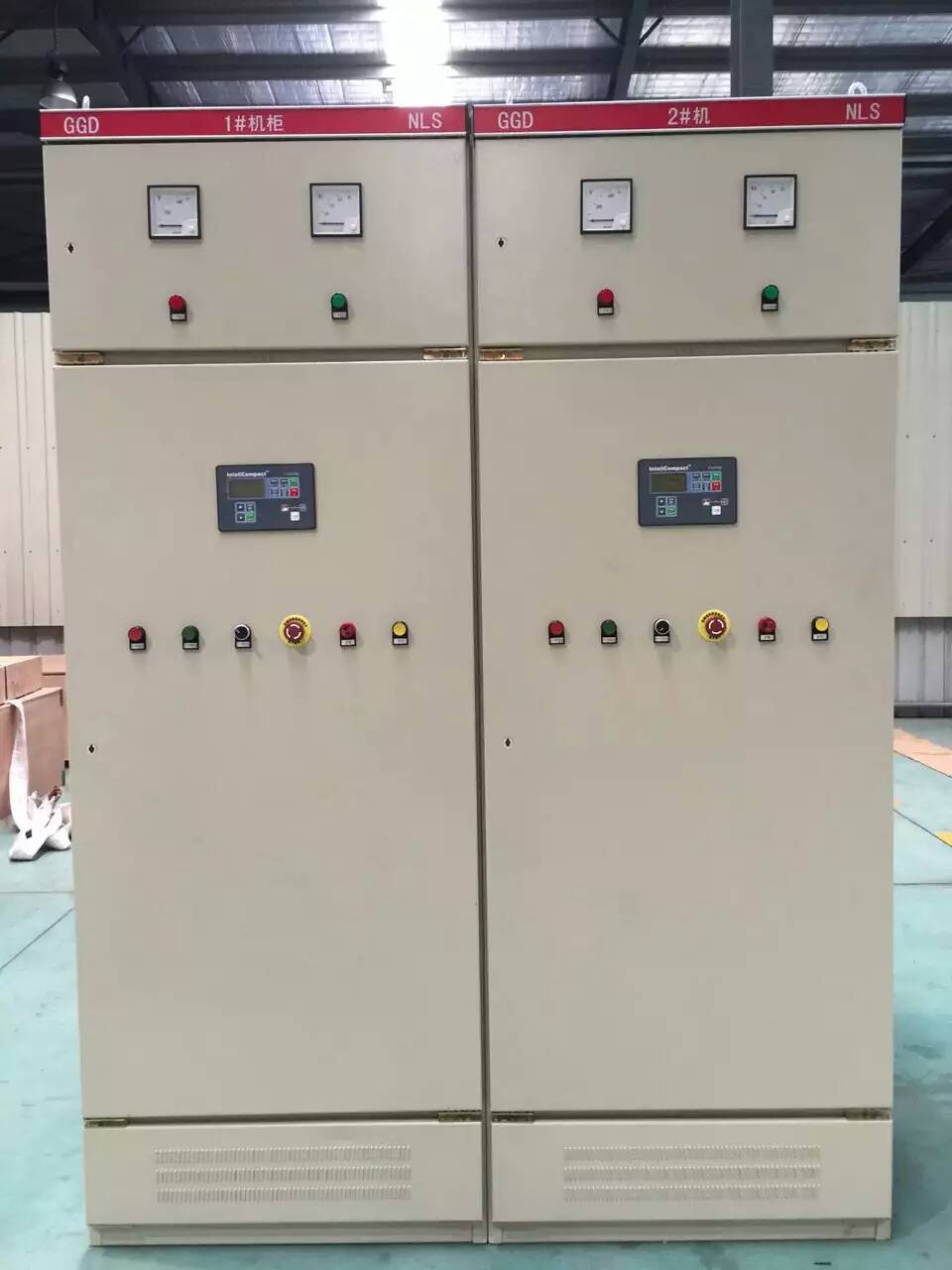

Jet power has many types of ATS cabinet

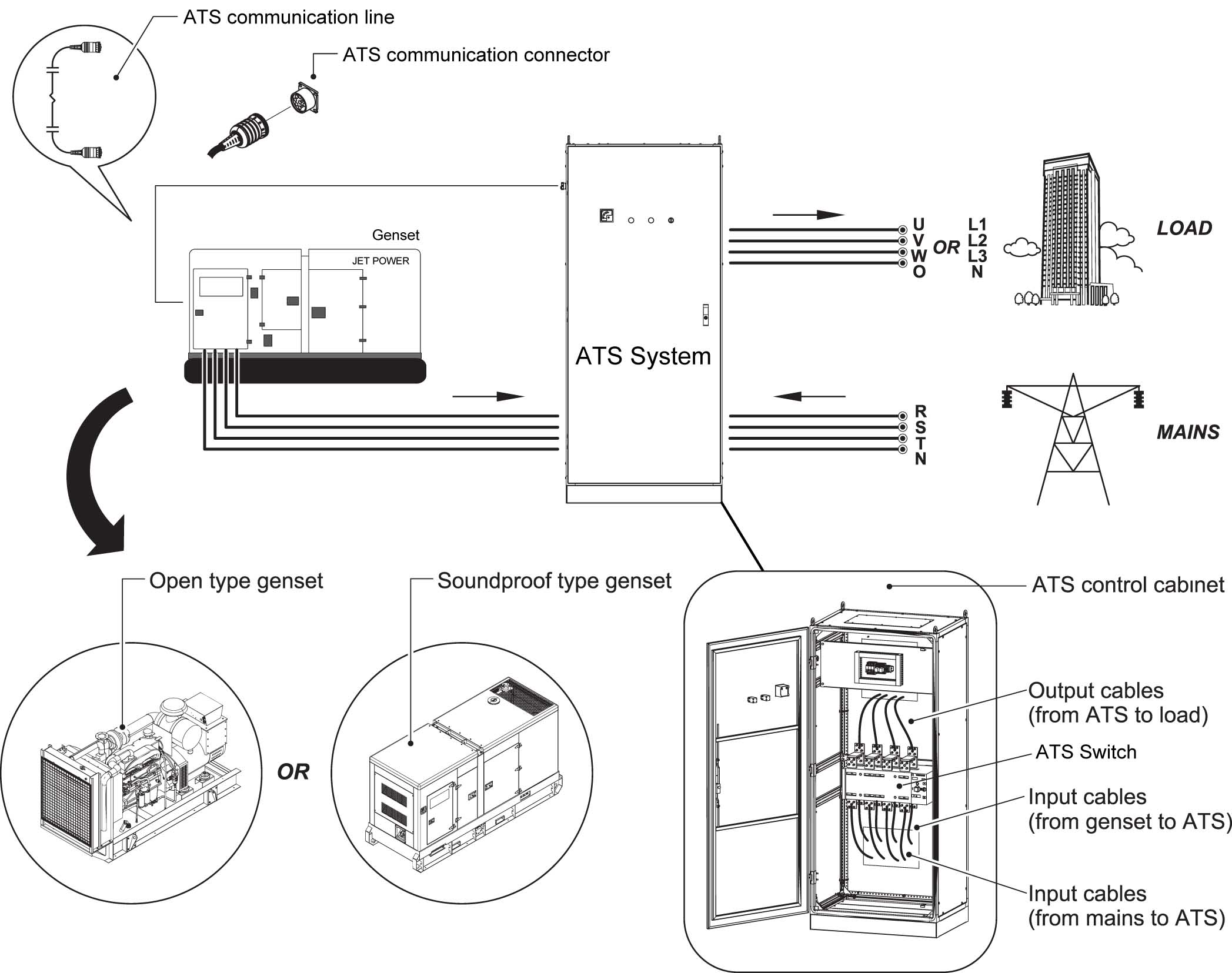

1. Standard ATS. It has 2 road power connection : Generator power and mains power. 2 road power are with electricaland mechanical interlocking. So it just can supply power to the load by 1 road at one time. The Standard ATS has few seconds without power. It depends on generator start time or ATS transfer time.
2. By pass Transfer Cabinet. It’s regular transfer test for ATS, and without power stop.
3. Instantaneous parallel transfer cabinet. It’s for strict time for power stop. The load is the most import. The power supply systems can realize seamless transfer. It’s usually used in hospital and data warehouse.

Jet Power Automatic transfer switch system
Jet Power Automatic transfer switch system
ATS Model	Power（Based on 400V 50HZ）	Switch	Control System
40A	P≤20KW	ATS - 40/4p	Smartgen HAT600
63A	20KW＜P≤32KW	ATS - 63/4p
80A	32KW＜P≤40KW	ATS - 80/4p
100A	40KW＜P≤50KW	ATS - 100/4p
125A	50KW＜P≤62KW	ATS - 125/4p
160A	62KW＜P≤80KW	ATS - 160/4p
250A	80KW＜P≤125KW	ATS -250/4P
400A	125KW＜P≤200KW	ATS -400/4P
630A	200KW＜P≤315KW	ATS -630/4P
800A	315KW＜P≤400KW	ATS -800/4P
1000A	400KW＜P≤500KW	ATS -1000/4P
1250A	500KW＜P≤625KW	ATS -1250/4P
1600A	625KW＜P≤800KW	ATS -1600/4P
1800A	800KW＜P≤900KW	ATS -1800/4P
2000A	900KW＜P≤1000KW	ATS - 2000/4P
2500A	1000KW＜P≤1250KW	ATS - 2500/4P
3200A	1250KW＜P≤1600KW	ATS - 3200/4P
