Electrical Control System

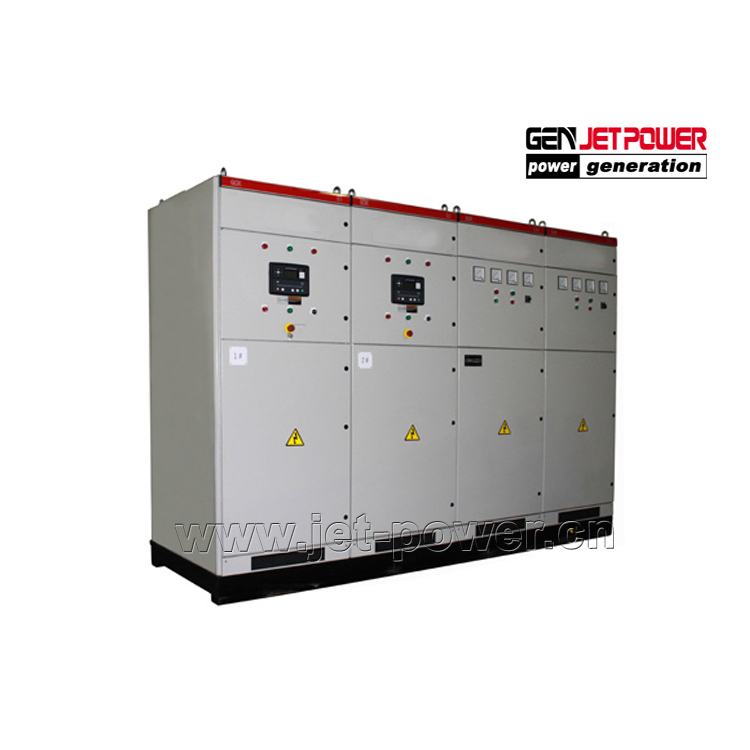

Paralleling Synchronization Controller System

Brand: JET POWER
Control model: DSE8610
Power:200KW to 2000KW

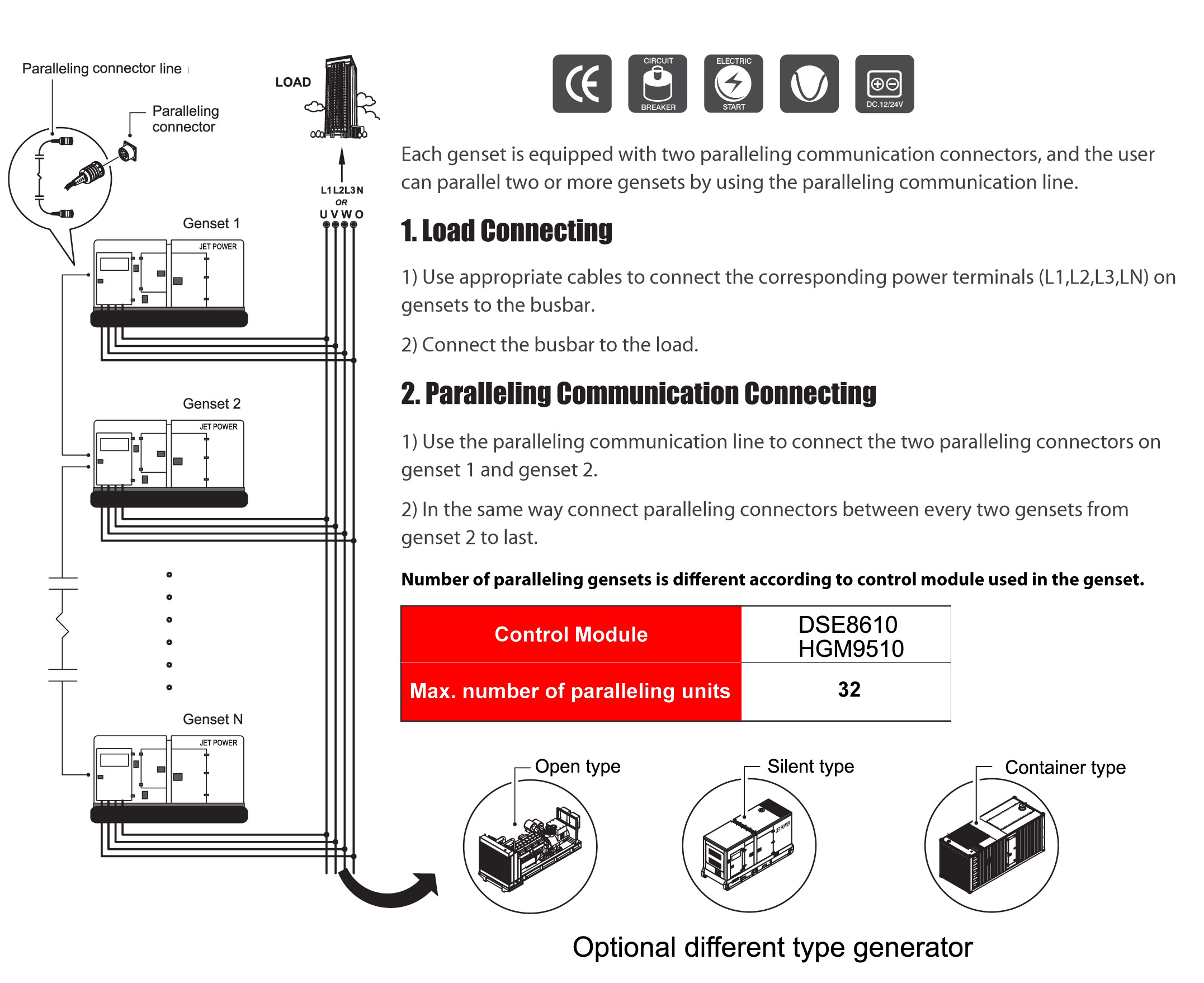

Product description: Parallel operation system, can be work at most 32 units Generator set. this system with international standard
INQUIRY

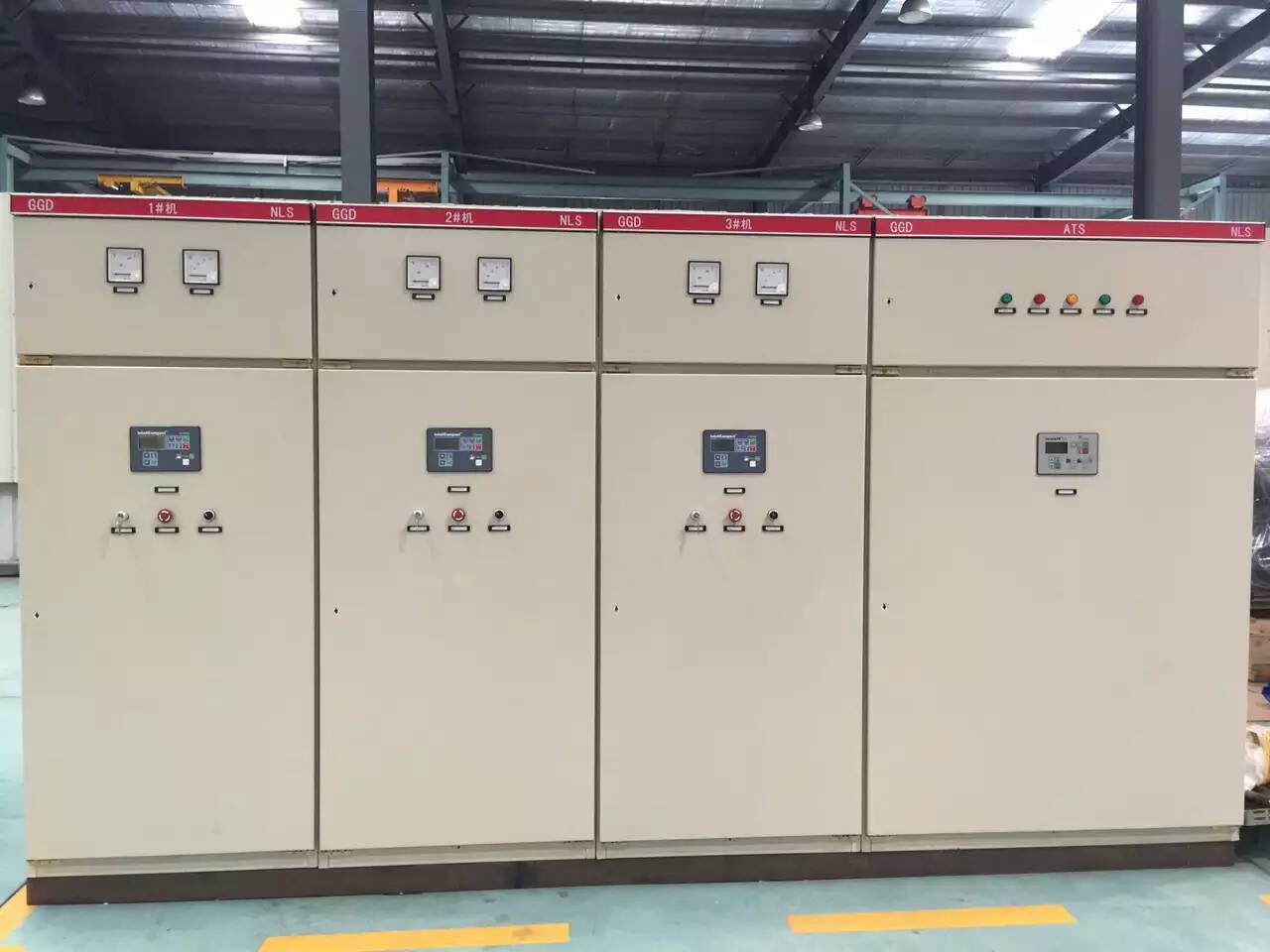

Jet power developed and designedparalleling synchronization controller system, with good performance and reliability
It adopts import synchronization panel. It provides function of many generators in parallel and load sharing. The system is simple,compact structure, highly integrated.
Jet power paralleling synchronization controller system has both electricity parameters and dynamic parameters monitoring protection. The main monitor parameters are as below,
1. Speed
2. Oil pressure
3. Water temperature
4. Battery voltage
5. Three phases voltage, current,frequency monitor
6. Load active power, reactive power, power factor monito
The main protection parameters are as below,
1. Over voltage, under voltage, over current, shortcircuit, reverse power etc.

2. Speed, oil pressure, water temperature, battery voltage fault etc.
