Engine and Water pump

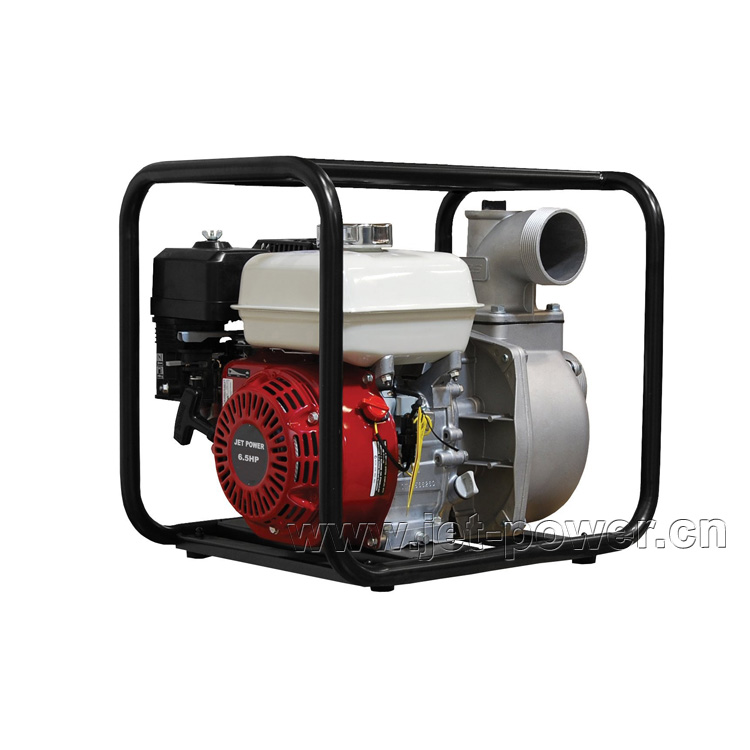

Gasoline Water Pump
- Brand: JET POWER
- 2 inch, 3 inch, 4 inch
- Protect Frame
- OHV Single cylinder engine
- Product description: Gasoline Water Pump, 2 inch, 3 inch, 4 inch, Manual start, Carton packing
■ Neat and economical for classical design.
■ Frame designed for better protection.
■ Oil alert system with automatic engine shut-off.
■4-stroke, OHV (overhead valve), single cylinder, air-cooled engine. Cast iron cylinder lining
■ Large muffler for quiet operation.
INQUIRY
■ Frame designed for better protection.
■ Oil alert system with automatic engine shut-off.
■4-stroke, OHV (overhead valve), single cylinder, air-cooled engine. Cast iron cylinder lining
■ Large muffler for quiet operation.
■ CE,EC-II,EPA,CARB,EMC approved
Specifications:
| Model | WP-20 | WP-30 | WP-40 |
| Type | Gasolinewaterpump | Gasolinewaterpump | Gasolinewaterpump |
|
Suction&dischargeport diameter(mm)(in) |
50(2inch) | 80(3inch) | 100(4inch) |
| Flow(m³/h) | 22 | 30 | 80 |
| Lifttotal(m) | 30m | 28m | 25m |
| Self-primingtime(s/4m) | 90 | 120 | 180 |
| Max.suctionhead(m) | 8 | 8 | 8 |
| Drivetype | Direct | Direct | Direct |
| Enginemodel | 168F(GX160) | 168F-2(GX200) | 188F(GX390) |
| Enginepower(Hp) | 5.5HP | 6.5HP | 13HP |
| Ratedspeed(r/min) | 3600 | 3600 | 3600 |
| Fuelconsumption(g/kW.h) | 395 | 395 | 374 |
| Displacement(cm3) | 163 | 196/163 | 277 |
| Startersystem | Recoilstarter | Recoilstarter | Recoilstarter |
| Netweight(kg) | 24 | 26 | 43 |
| Dimension（LxWxH）mm | 480×370×385 | 510×370×430 | 640×460×520 |
| 20GPContainer(Qty) | 450 | 345 | 180 |
| 40HQContainer(Qty) | 960 | 840 | 465 |
