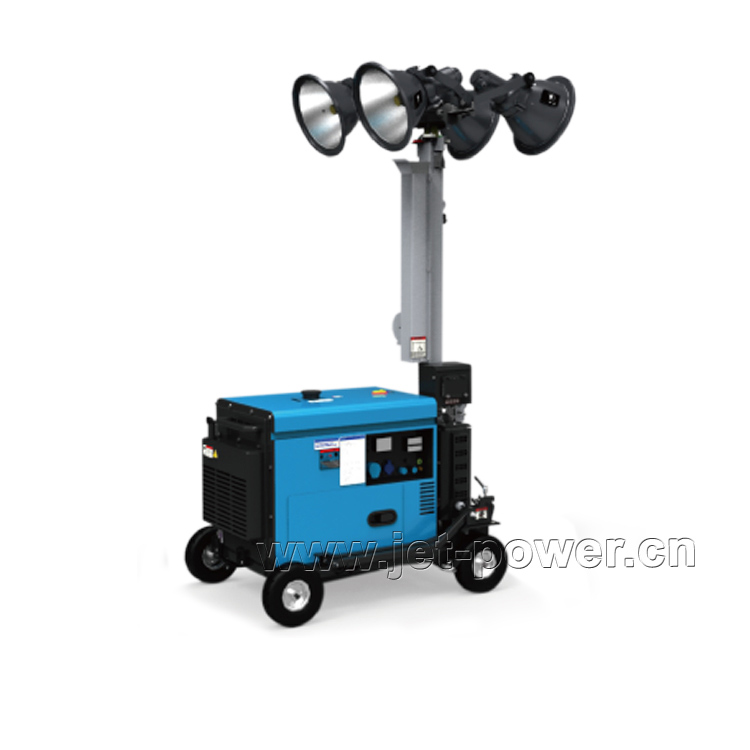

Portable Mobile Light Tower Generator Set

Portable Mobile Light Tower Generator Set

Feature:
Stable performance high safety high adaptability,

High lumen energy conservation,

Equipped with world famous engine and alternator

All-weather canopy and manual / Auto mast

Wind-proof frame design

Intelligent control system, Alarm system

Equipped 5* supporting leg and with brake system

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer, Marathon, JET, Mecc alte.

3. Equipped with 50°C radiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp ,

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

Specifications:

Model	LTG6000
Mast
Maximum height of mast	6m
Elevation	Mechanical / Electric
Raising/lowering mast	Winch / Button
Turning angle	358 degrees
Stage	3 ( 2-3 is optional)
Maximum towing speed	5km/h
Maximum wind speed rating	20km/h
Lighting
Total power of lamps	4x1,000Watts
Type of lamp	Metal halide
Light capacity	4x88,000lumen
Voltages	120, 220, 230, 240Volts
Frequency	50Hz / 60Hz
Lifetime of lamp	5,000hours
Working temperature	≤85°C
Protection grade	IP54
Characteristics of generator set
Engine brand	Jet Power
Rated power	5.0kw/50Hz   5.5kw/60Hz
Engine model	188FA  - Air Coold Diesel
Intake system	Natural Aspiration
Engine speed	50Hz 3000rpm, 60Hz 3600rpm
Type	Single cylinder, air-cooled
Starting system	Electric
Alternator	2-pole, brushless
Fuel tank capacity	100L
Fuel consumption at 100% load	1.85L/H
Max continuous running time	60Hours
Control system	key control panel
Power Outlets	2
Trailer
Tow hitch	Ring / Ball hitch
Stabilier Supports	5 pcs * Manual
Wheel Size	16'
wheel Qty	2 pcs
Brakes System	Manual
Canopy	With two doors access for easy maintenance , Detachable Roof
Dimension (LXWXH) & Weight
Storage	2650 × 1300 × 2450mm
Working	2650 ×2400 ×8000mm
Weight	280kg

---
