Alternator

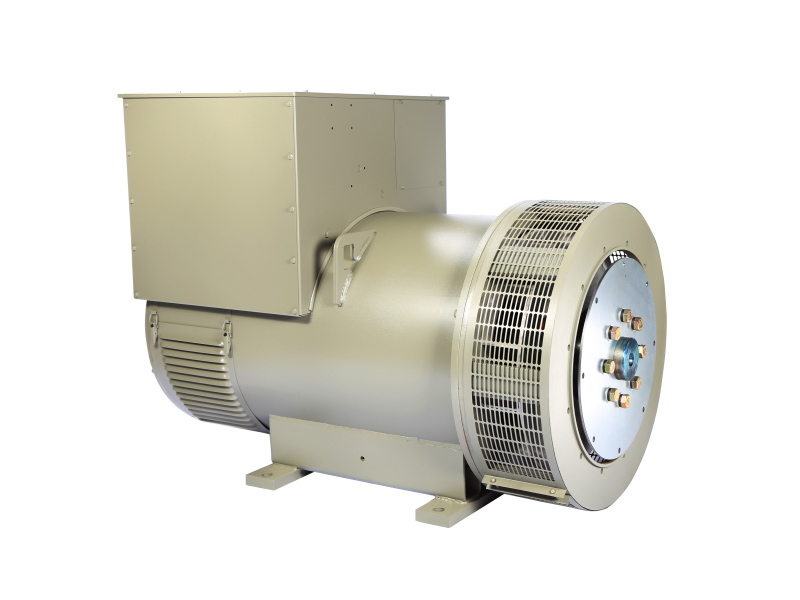

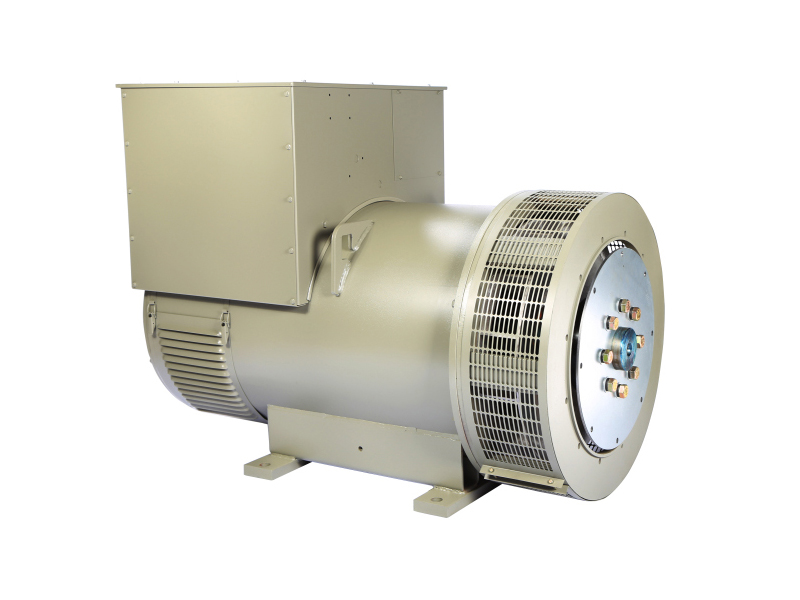

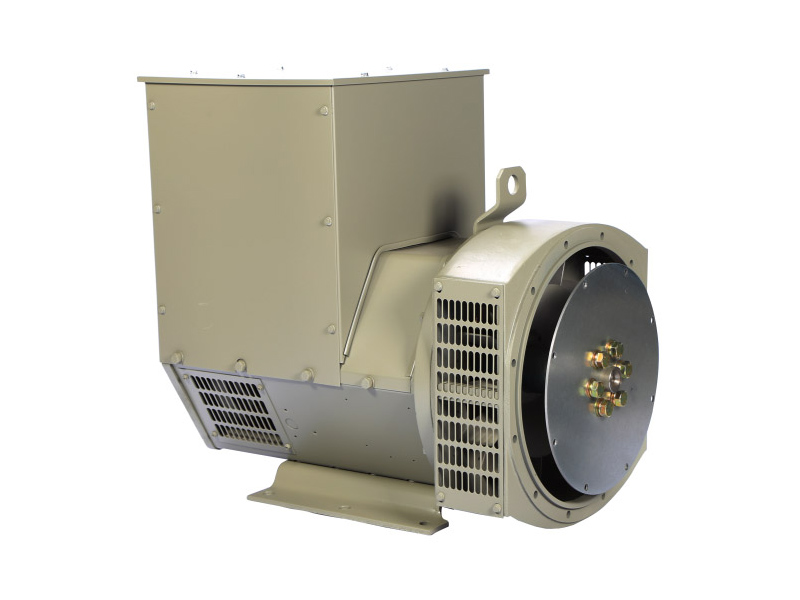

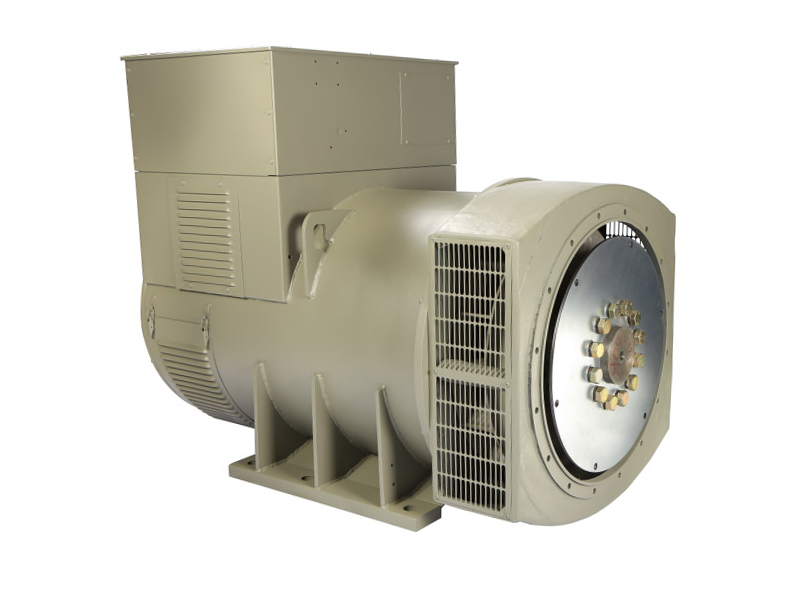

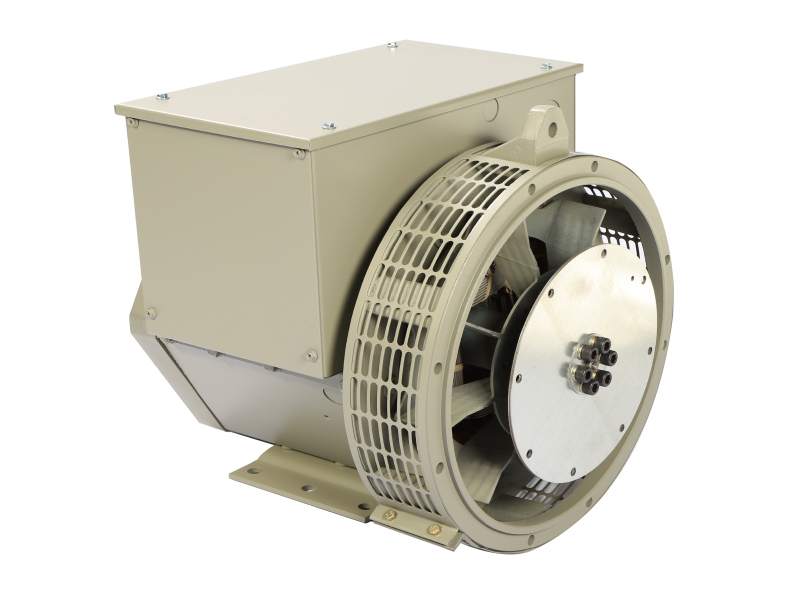

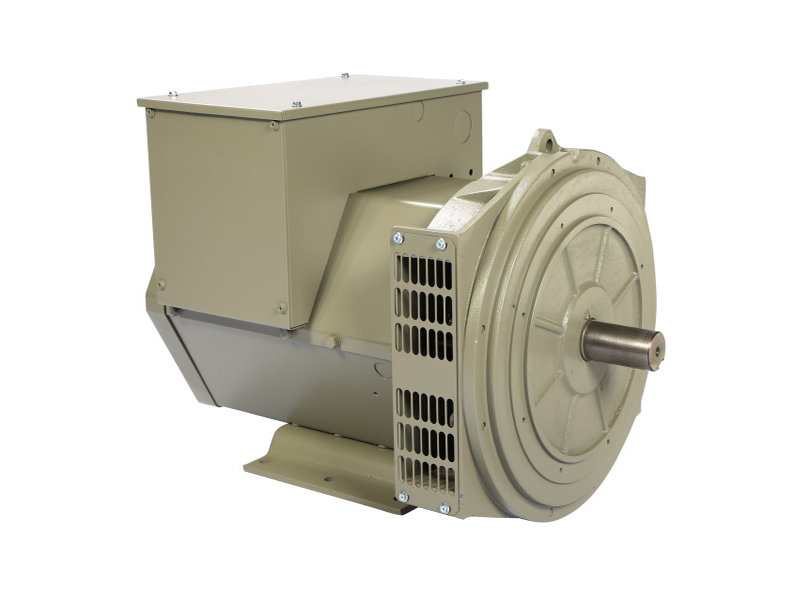

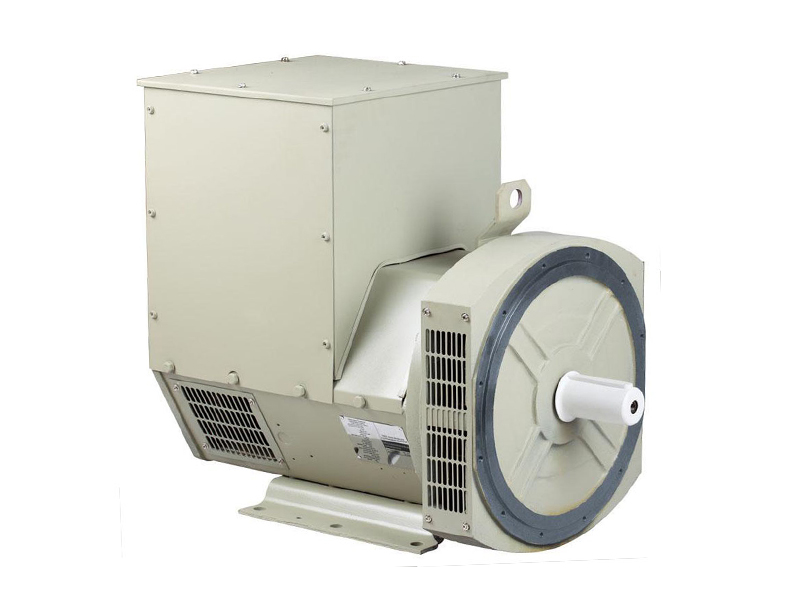

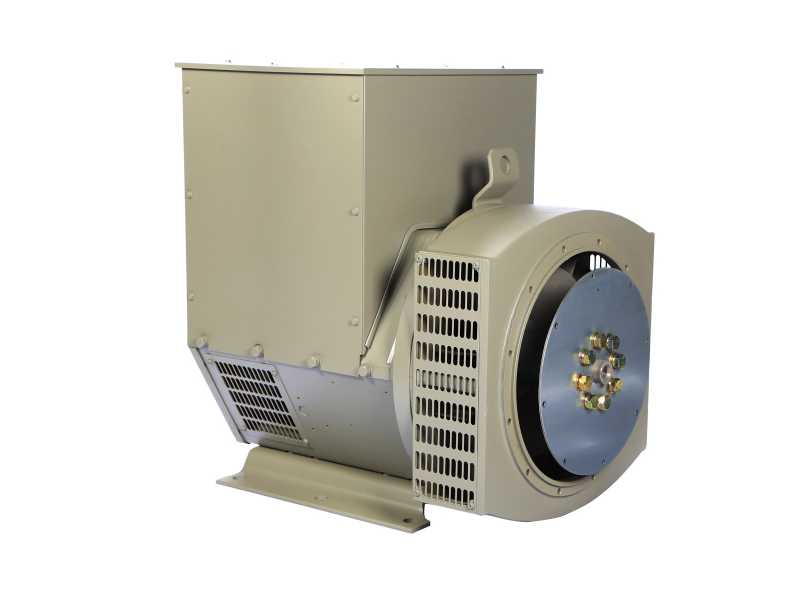

Brushless Synchronous Alternator

Output Power:6.5KW ~ 1000KW
Stamford technology
Copper alternator with AVR
Brushless excitation
Product description: 6.5KW to 1000KW Brushless Synchronous Alternator with Stamford technology, 100% copper and 100% power output.
INQUIRY

JET SeriesBrushless Synchronous Alternatorare made adopted Stamford alternators technology and according to the standards of GB755、IEC60034、NEMA etc. The alternators have standard features: voltage adjust, stability adjust, under frequency roll off, over exciting protection, low radio interference, etc. The stators are 2/3 pitch winding, the rotors are fixed sequential damper winding. The stator core is designed landler taking advantage of CAD, ensuring a very low waveform distortion. ”H” class insulation system is provided the high build required for static windings and the high mechanical strength required for rotating components.

ELECTRIC FEATURES

Insulation Class H

All regulatory components are made up with special materials and are immersed in lacquer by peculiar tech. Vanish and colophony materials are develop to strengthen the processing and machinery intensity of windings and revolving parts for protecting the alternator work under corrosive environment.

Winding and electric features

2/3 pith winding design can effectively eliminate the third harmonic wave(3th.9th,15th) of the voltage ,which is the best design of UPS for nonlinear load .Connected with the network in parallel, the structure can restrain excessive currents in the midline. This and the 2/3 pitch help to check the wave distortion and output voltage.

Phone interference and Radio interference

THF (defined by 40thpart of BS4999) <2%.TIF<50

Brushless apparatus and quality AVR ensure little radio interference in transmission. RFI noise filter is also available.

Manufacturing Standard

GB755, BS 5000, VDE 0530, NEMA MG1-22, IEC34

Warranty policy

JET product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provide cost spare parts maintenance of alternator.

Specifications:

MODEL	3-PHASE 50Hz /1500RPM 380V-440V		3-PHASE 60Hz /1800RPM 440V-480V		DIMENSION	WEIGHT
MODEL	(KVA)	(KW)	(KVA)	(KW)	CM	KG
JET 164A	8.1	6.5	10.2	8.2	64×54×72	95
JET 164B	11	8.8	13.8	11	64×54×72	102
JET 164C	13.5	10.8	16.9	13.5	64×54×72	110
JET 164D	16	12.8	20	16	64×54×72	116
JET 184D	18.7	15	22	18	84×59×75	120
JET 184E	22.5	18	28.8	23	84×59×75	133
JET 184F	27.5	22	34.4	27.5	84×59×75	156
JET 184G	31.3	25	37.5	30	84×59×75	172
JET 184H	37.5	30	46.9	37.5	84×59×75	226
JET 184J	40	32	50	40	84×59×75	236
JET 224C	42.5	34	52.5	42	96×66×102	275
JET 224D	50	40	62.5	50	96×66×102	295
JET 224E	60	50	70	56	96×66×102	315
JET 224F	75	60	87.5	70	96×66×102	345
JET 224G	87.5	70	97.5	78	96×66×102	385
JET 274C	100	80	118	94	126×76×102	415
JET 274D	115	92	138	110	126×76×102	435
JET 274D1	125	100	137.5	110	126×76×102	450
JET 274E	140	112	168	134	126×76×102	485
JET 274F	160	128	190	152	126×76×102	530
JET 274G	175	140	213	170	126×76×102	580
JET 274H	200	160	245	196	126×76×102	630
JET 274J	230	184	281	224.8	130×76×102	750
JET 274K	250	200	299	239.2	130×76×102	760
JET 444C	250	200	294	235	151×79×107	880
JET 444D	295	236	350	280	151×79×107	950
JET 444E	325	260	394	315	151×79×107	1065
JET 444FS	380	304	456	365	151×79×107	1145
JET 444F	400	320	480	384	151×79×107	1185
JET 544C	450	360	550	440	165×95×116	1350
JET 544D	500	400	594	475	165×95×116	1450
JET 544E	600	480	713	570	165×95×116	1700
JET 544FS	625	500	725	580	165×95×116	1753
JET 544F	670	536	775	620	165×95×116	1820
JET 634B	750	600	855	684	180×100×145	2020
JET 634C	800	640	916	732.8	180×100×145	2050
JET 634D	910	728	1034	834.2	180×100×145	2100
JET 634E	1000	800	1145	916	180×100×145	2260
JET 634F	1130	904	1274	1019.2	180×100×145	2490
JET 634G	1250	1000	1386	1108.8	180×100×145	2820
