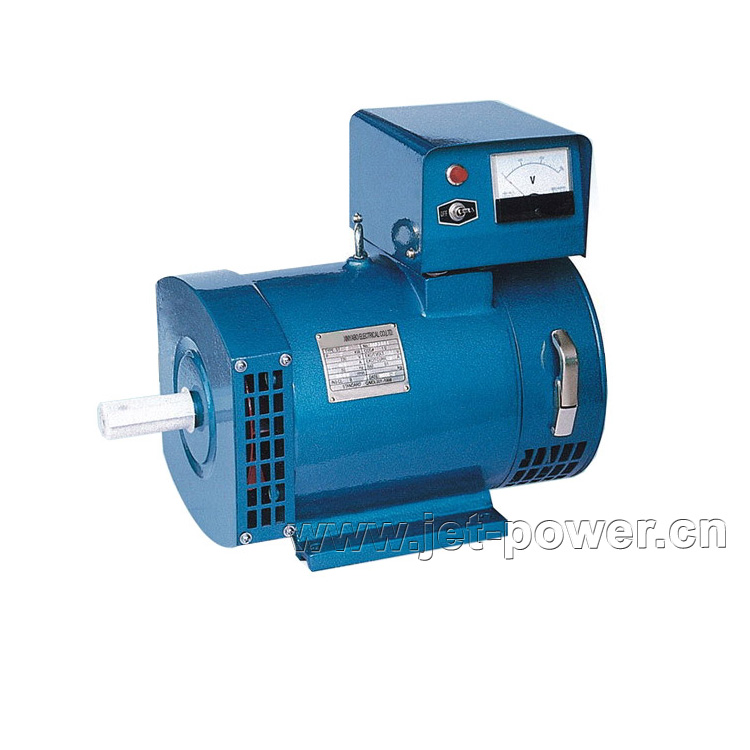

ST Series Single Phase Alternator
- Brand: JET POWER
- A.C Synchronous Alternator
- Copper alternator
- Brush excitation
- Product description: Product description: St series single phase alternator with brush. power from 2KW to 20KW 100% copper and 100% power output. Good quality ISO9001 and Ce authentication
ST Series generators of "JET POWER" brand are mainly designed to serve as power generating unit for lighting purpose in ships, towns or villages and house-hold electric appliances. The construction of the generators is drip-proof type, IP21, salient-pole rotating field self excitation and constant voltage type. The generator interior is made of high quality magnetic and electrical materials. Insulation for stator and rotor is class B or F. The generators are elegant in appearance, tight in construction and easy maintenance. IEC standard are adopted on dimension, Which are suitable for using in Australia, Europe, America and other countries with the end covers to be model B.
The generators are made as per standard JB/T3320.2-2000. And in conformity to IEC34-1
1. Altitude: not exceed 1000m.
2. Cooling air temperature: 258~313K (-15oC~40oC).
3. Relative air humidity: not exceed 90%.
TYPE: ST Poles: 4 Output: 1~24 ( kW) Speed: 1500/1800(r.p.m)
|Model||Rated Power (KW)||Voltage (V)||Current (A)||Power Factor (cos)||Number of poles||50hz / 60Hz / Speed(r.p.m)|
|In series||In parallel||In series||In parallel|
|ST-2||2KW||230||115||8.7||17.4||1.0||4||1500 / 1800|
|ST-3||3KW||230||115||13||26||1.0||4||1500 / 1800|
|ST-5||5KW||230||115||21.8||43.5||1.0||4||1500 / 1800|
|ST-7.5||7.5KW||230||115||32.6||65.2||1.0||4||1500 / 1800|
|ST-10||10KW||230||115||43.5||87||1.0||4||1500 / 1800|
|ST-12||12KW||230||115||52.2||104||1.0||4||1500 / 1800|
|ST-15||15KW||230||115||65.3||130||1.0||4||1500 / 1800|
1500 / 1800
