Open Diesel Generator

  • SDEC Diesel Generator Set
  • SDEC Diesel Generator Set
  • SDEC Diesel Generator Set
SDEC Diesel Generator SetSDEC Diesel Generator SetSDEC Diesel Generator Set

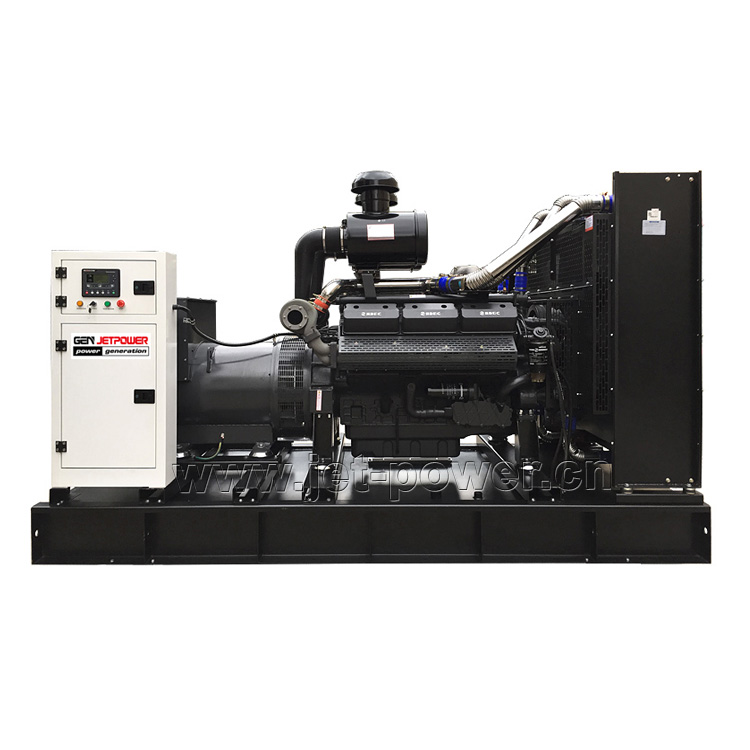

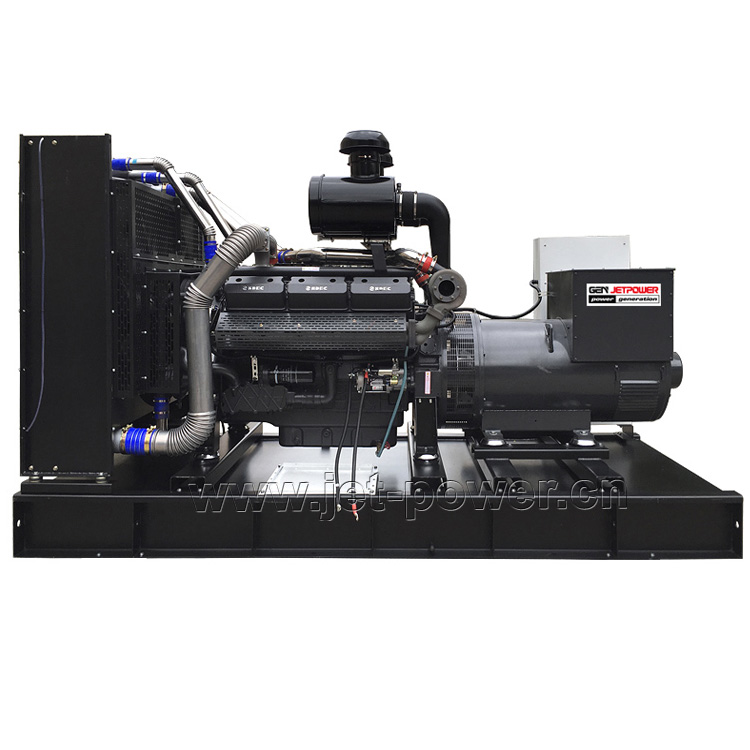

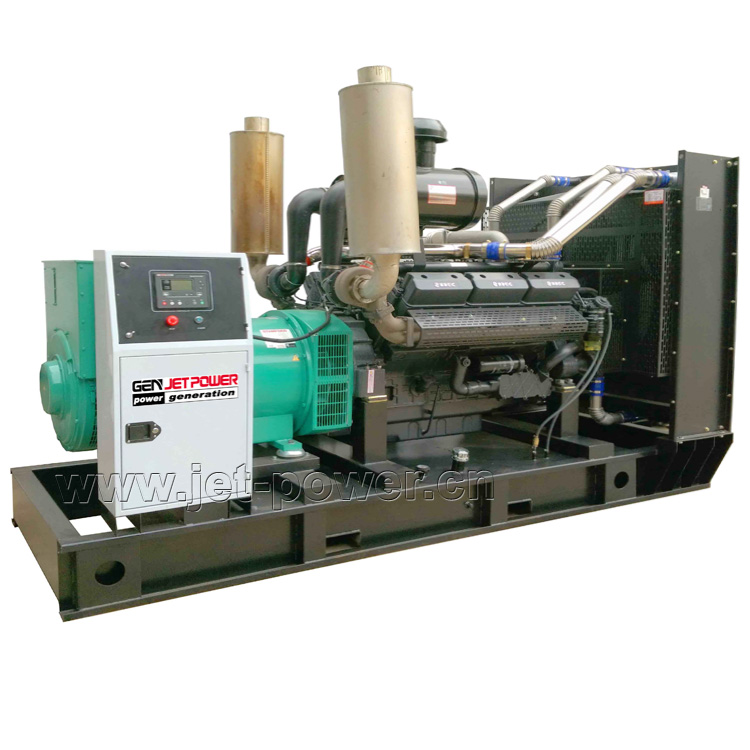

SDEC Diesel Generator Set

  • Output: 63kVA - 1000KVA
  • Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
  • Open type / Silent type
  • Product description: SHANGHAI SDEC Diesel Generator Set Power from 63KVA to 1000KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.

Silent diesel generator set, Powered by SHANGHAI SDEC ENGINE

Soundproof diesel generator set

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MM to 10MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set   Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm  or  60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level:  ≤1000 meters

Ambient air temperature:  ≤40°C

Relative air humidity:  ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U,  DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system


Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

50Hz Product:


Model 400V / 50Hz / 1500RPM SDEC Diesel Engine 1500rpm Alternator
Standby output Prime Output Model Engine type Displacement Bore×Stroke Brushless Alternator
KVA KW KVA KW No. of Cylinder Governor (L) (MM)
SD-69 69 55 63 50 SC4H95D2 L4 Electric 4.3 105x124 JET224E
SD-88 88 70 80 64 SC4H115D2 L4 Electric 4.3 105x124 JET224G
SD-110 110 88 100 80 SC4H160D2 L4 Electric 4.3 105x124 JET274C
SD-138 138 110 125 100 SC4H180D2 L4 Electric 4.3 105x124 JET274D1
SD-176 176 141 160 128 SC7H230D2 L6 Electric 6.5 105x124 JET274F
SD-200 200 160 180 144 SC7H250D2 L6 Electric 6.5 105x124 JET274G
SD-220 220 176 200 160 SC8D280D2 L6 Electric 8.27 114x135 JET274H
SD-250 250 200 225 180 SC9D310D2 L6 Electric 8.82 114x144 JET274J
SD-275 275 220 250 200 SC9D340D2 L6 Electric 8.82 114x144 JET274K
SD-330 330 264 300 240 SC12E460D2 L6 Electric 11.8 128x153 JET444D
SD-360 358 286 325 260 SC12E460D2 L6 Electric 11.8 128x153 JET444E
SD-385 385 308 350 280 SC15G500D2 L6 Electric 14.16 135x165 JET444E1
SD-413 413 330 375 300 SC15G500D2 L6 Electric 14.16 135x165 JET444FS
SD-500 500 400 450 360 SC25G610D2 12V Electric 25.8 135x150 JET544C
SD-550 550 440 500 400 SC25G690D2 12V Electric 25.8 135x150 JET544D
SD-625 625 500 563 450 SC27G755D2 12V Electric 26.6 135x155 JET544E1
SD-688 688 550 625 500 SC27G830D2 12V Electric 26.6 135x155 JET544FS
SD-760 756 608 688 550 SC27G900D2 12V Electric 26.6 135x155 JET544F
SD-825 825 660 750 600 SC33W990D2 L6 Electric 32.8 180x215 JET634B
SD-1000 1000 800 900 720 SC33W1150D2 L6 Electric 32.8 180x215 JET634D
