Open Diesel Generator

  • SHANGHAI Diesel Generator Set
  • SHANGHAI Diesel Generator Set
SHANGHAI Diesel Generator SetSHANGHAI Diesel Generator Set

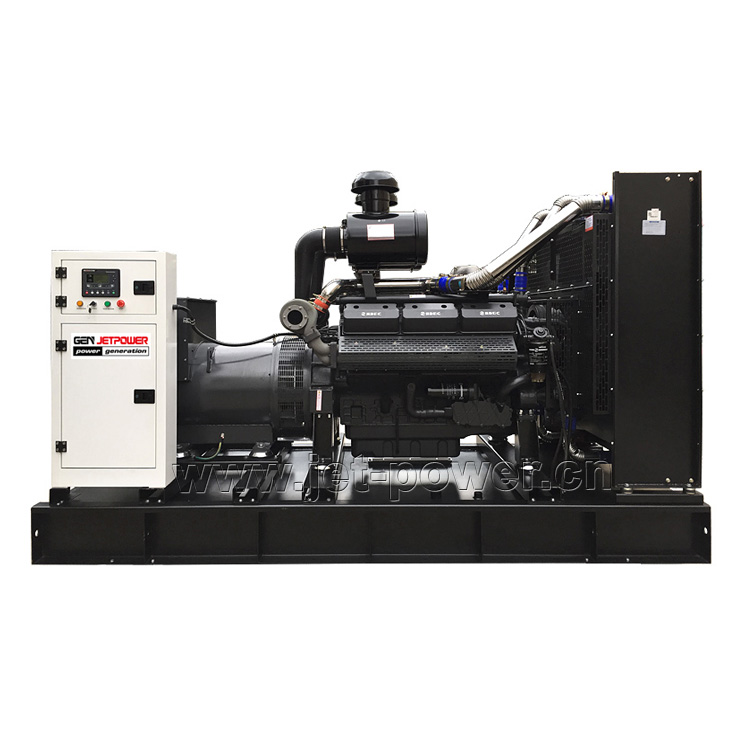

SHANGHAI Diesel Generator Set

  • Output: 450kVA - 1100KVA
  • Powered by SHANGHAI ENGINE
  • Alternator: Stamford, Leroy Somer, Marathon, Jet Power, Mecc alte
  • Open type / Silent type
  • Product description: SHANGHAI Diesel Generator Set Power from 450KVA to 1100KVA. optional: Open type, Silent type, Container type, trailer type. optional: ATS system, AMF function, Parallel system.

Silent diesel generator set, Powered by SHANGHAI DIESEL ENGINE

Soundproof diesel generator set

Safety – Stability – Economy -  Reliability Power

1. Our cooperate with famous diesel engine –Powered by Cummins, Perkins,  Deutz , LovoL , Lister Petter, Doosan, Yanmar, Kubota, Shangchai, SDEC, Weichai, MTU, Ricardo, Jichai.

2. Equipped with famous Brushless alternator – Optional Stamford, Leroy Somer,Marathon, JET Power, Mecc alte.

3. Equipped with50°Cradiator with fan, enough engine cooling system guarantee long time working

4. Equipped with advanced generator set control system, ATS system, remote control system, parallel operation system, optional control model, Deep sea, Smartgen , ComAp , Jet Power

5. Generator set use High-quality steel are thickness canopy --2MM to 10MM

6. Equipped with high density sound-absorbing material -- sound insulation, fireproofing

7. Generator equipped with 12V/ 24V DC battery with charger, battery connects wire.

8. Generator equipped with 10-12 hours fuel tank with fuel indicator, long time for working.

9. High protect class control box and power output box. IP55, Waterproof, Electric leakage protect, Breaker

10. New design of turn-back type for air inflow & air outlet which can reduce the noise and improve engine efficiency.

11. Beautiful & practicably design, Bottom hole for forklift, Water outlet & oil outlet for easy maintenance

12. Double open door on both sides of the Gensets. Spacious doors can check for every part of the engine and alternator.

13. All new design for diesel generator set of Silent, Supper silent, Soundproof, Trailer type, Container type.

Diesel generator set   Silent / Soundproof type / Trailer type / container generator

Our generator set compliance with all main standards, such as : GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard

Diesel generator Prime output power: from 2KVA to 2500KVA

Rated voltage: 120V/240V, 220/380V, 230V/400V, 254V/440V etc. other voltage is optional

Generator Phase and connecting: 3 phase, 4wire.

Rated frequency: 50Hz@1500rpm  or  60Hz@1800rpm

Alternator excited type: Brushless, self excited or PMG optional

Alternator Insulation: Class H

Alternator Protection: IP21 ~ IP23

Voltage regulation: AVR automatic control 1%

Altitude above sea level:  ≤1000 meters

Ambient air temperature:  ≤40°C

Relative air humidity:  ≤ 90%

Controller System

1. DSE6020, HGM6120U, DSE7320 (AMF) model Standard control panel, including digital LED genset control model: HGM6120U,  DSE7320, DSE6020

2. Automatic transfer switch (ATS) and Automatic parallel operation system


Standard accessories: Standard 50 radiator mounted on skid. Common steel frame, circuit breaker, damper, exhaust silencer, flexible pipe, battery and connecting wire, Standard tool kit, operation manual and Testing document

Manufacturing Standard

GB/T2820, ISO8528,IEC34, CE, EPA Tier4 standard ,GB755,BS 5000,VDE 0530, NEMA MG1-22,IEC34。

Product Warranty policy

JET Power product has guarantee for one year or 1000 hours whichever reach first from ex-factory date. During the guarantee period, our will provide the free easy-damageable spare parts of alternator caused by our quality of production or raw material. After expiration, our provides cost spare parts maintenance of alternator. If engine with international warranty service, the engine product warranty by local authorization Service agent.

50Hz Product:


Model 400V / 50Hz / 1500RPM SHANGHAI Diesel Engine Alternator
Standby output Prime Output 400V Engine Model/Output Engine type Fuel Consumption Displacement Bore×Stroke Brushless type
KVA KW KVA KW A No. of Cylinder Governor 100% Load ((Liter/hr (L) (MM)
GF-500 500 400 450 360 650 K25G829D 12V Electronic 150 26.6 135×155 JET544C
GF-550 550 440 500 400 722 K25G829D 12V Electronic 165 26.6 135×155 JET544D
GF-688 687.5 550 625 500 902 K29G1120D 12V Electronic 210 28.7 138×160 JET544FS
GF-750 750 600 670 536 967 K29G1120D 12V Electronic 220 28.7 138×160 JET544F
GF-825 825 660 750 600 1083 K29G1210D 12V Electronic 240 29.6 138×165 JET634B
GF-880 880 704 800 640 1155 K33G1310D 12V Electronic 260 31.4 140×170 JET634C
GF-1000 1000 800 910 728 1314 K33G1500D 12V Electronic 290 31.15 138×168 JET634D
GF-1100 1100 880 1000 800 1443 K33G1600D 12V Electronic 320 31.15 138×168 JET634E
